TFLN Phase Modulator (Preliminary Version)
- Bandwidth up-to 40 GHz
- Low half-wave voltage down-to 2.8 V
- Low insertion loss 4.5 dB
- Small device size
Attachment
The thin-film lithium niobate (TFLN) phase modulator is an exceptional opto-electric converter device, which was developed in-house and showcased unparalleled performance. This device is manufactured using advanced coupling and micro-electronic processes and realizes high opto-electric conversion efficiency on TFLN. Compared to other commercial bulk lithium niobate-based modulators, our products provide superior characteristics on half-wave voltage, stability, and device size, significantly enhancing critical performance in digital optical communications and telecommunication networks.
Specifications
Category | Parameters | Symbol | Unit | Performance | |
Optical Features | Operating Wavelength | λ | nm | ~ 1550 | |
Optical Return Loss | ORL | dB | ≤ -27 | ||
Optical Insertion Loss | IL | dB | Max: 5.5Typ: 4.5 | ||
Electrical Features | 3dB Bandwidth(from 2 GHz) | S21 | GHz | X1 : 2 | X1 : 4 |
20 | 40 | ||||
RF Load | Rm | Ohm | 50 ± 10 | ||
RF Vπ(@ 50 KHz) | Vπ | V | Max: 3.0Typ: 2.8 | ||
RF Return Loss ( 10 MHz to 40 GHz) | S11 | dB | ≤ -10 | ||
WorkCondition | Operating Temperature | TO | ℃ | -20~70 |
Absolute Maximum Ratings
Working over maximum ratings could significantly reduce device reliability and cause irreversible damage.
Parameters | Symbol | Optional | Min. | Max. | Unit |
RF Input Power | Sin | X2 : 4 | – | 23 | dBm |
X2 : 5 | – | 29 | |||
RF Swing Voltage | Vpp | X2 : 4 | -4.465 | +4.465 | V |
X2 : 5 | -8.915 | +8.915 | |||
RF RMS Voltage | Vrms | X2 : 4 | – | 3.16 | V |
X2 : 5 | – | 6.30 | |||
Optical Input Power | Pin. max | – | – | 23 | dBm |
Heater Bias Voltage | Vh | – | 0 | 4 | V |
Storage Temperature | Ts | – | -40 | 85 | ℃ |
Relative Humidity(no condensation) | RH | – | 5 | 90 | % |

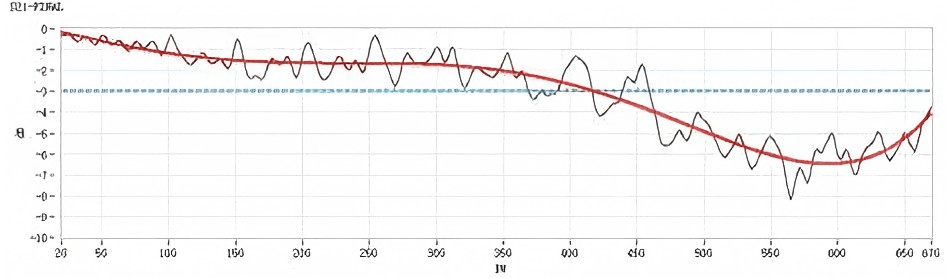

S21 Measurement (Typical)

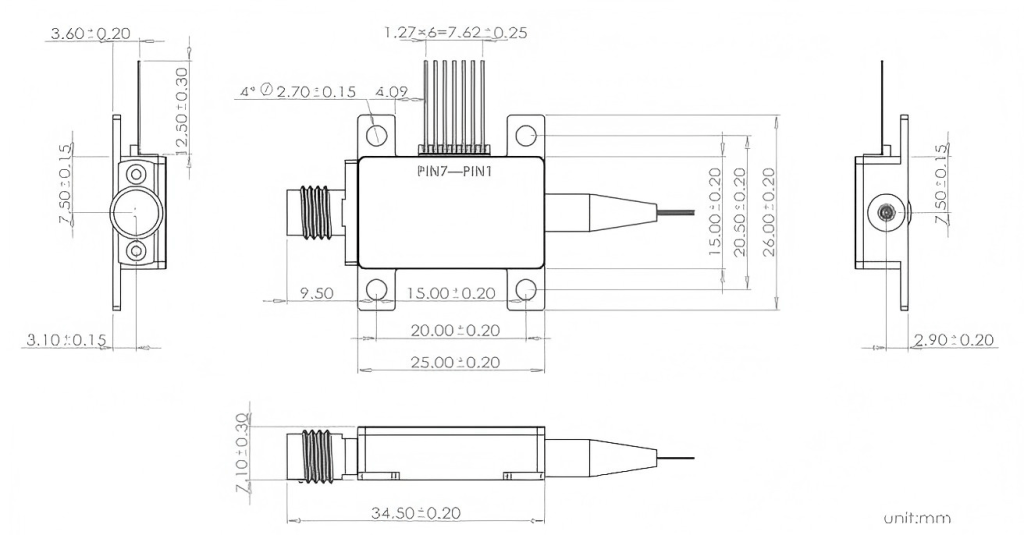

Package and Pins (Unit: mm)
PIN | Symbol | Description |
1 | – | N/A |
2 | – | N/A |
3 | – | N/A |
4 | – | N/A |
5 | – | N/A |
6 | – | N/A |
7 | – | N/A |
RF | RF connector* | 2.92mm connector |
In | Input fiber | FC/APC, PMF |
Out | Output fiber | FC/APC, PMF |
* Customizable 1.85mm connector.
Ordering Information
P/N: NY- X1 – C6PPBP5- X2
Optional Model | Description | Optional Code |
X1 | RF 3dB Bandwidth | 2 or 4 |
X2 | Maximum RF Swing Voltage | 4 or 5 |
Product Description: C-band LiNbO3 TFLN phase modulator device, polarization maintaining fiber as optical input and output.
