RADIO ALTIMETER TEST SET

Introduction of Radio Altimeter Simulator

DS-HES series radio altimeter simulators are photoelectric delay systems specially developed for various radio altimeter simulators’ production, measurements, and maintenance. The systems depend on the technology of the fiber-optic delay line, using fiber-optic lines as the carrier, and the feature of light delay to simulate RF microwave signals’ space transmission distance. In addition, with this technology, the systems can simulate and measure different heights’ transmission.

NEON’s radio altimeter test set mainly contains three models: standard case, portable and core module.



Features of Radio Altimeter Simulator

  • Wide simulated height range(0 to 22000 above );
  • High simulate altimeter accuracy(≥1‰);
  • Optional simulate configuration(support more than 210 configurations);
  • Manual switch and automatic switch;
  • Volume miniaturization, strong electromagnetic compatibility, high work reliability;
  • Multiple control mode: UART, LAN, etc. ;
  • Various standard tests platform interface such as PXI, VXI, LXI.

Application of Radio Altimeter Simulator

  • Place: Radio altimeter for radar,AEW,satellite,helicopter and etc
  • Measure the accuracy of the altimeter
  • Measure the sensitivity of research and tracking
  • Measurement of another parameter

Working Principle of Radio Altimeter Simulator

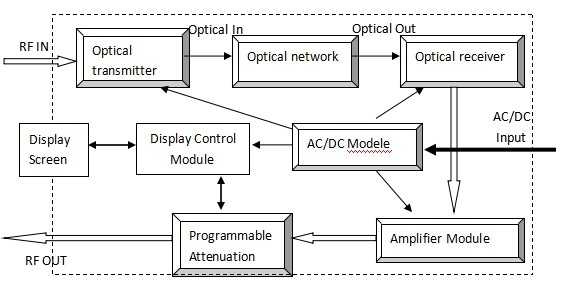

Radio Altimeter Simulator is mainly composed of an RF attenuation module, electrical/optical conversion module, optical fiber delay module, optical/electrical conversion module, RF amplification module, adjustable attenuation module, power supply conversion module, microcomputer control, and touch display module. It is used to complete the altitude excitation of the radio altimeter in the laboratory environment.

1328893742198976514

Advantages of Radio Altimeter Simulator

Compare with the traditional SAM(surface acoustic wave) delay line system, the DS-HES series radio altimeter simulator have more advantages such as a wide working frequency band, high straight suppression ratio, triple transit signals that are immeasurable, long-life operation without calibration, and high work reliability.

Package&Shipment

1328635156122935297

Package

1328635543479492609

Why Choose Us

  • +10 Years of experience in the industry
  • Over 50 experienced employees, including 10 postgraduates and more than 5 experts
  • High precise equipment and advanced technology
  • Fast response and high-performance parameters
  • Reliable, dependable, and friendly support
  • Service both military and commercial markets

Specification of the Radio Altimeter Test Set

Parameter Parameter values Unit Remark
Min Typical Max
Frequency range 4 – 4.6 GHz
Amplitude response – ±1.5 ±2 dB
Simulate height 1 – 22000 m Extensible
Simulate height’s accuracy 0.50% 1% – –
Maximum input power – 2 Customized W Continuous wave
– 100 Customized W Pulse wave
Input VSWR – 1.3 1.5 –
Output VSWR – 1.3 1.5 –
Impedance – 50 – Ω
Simulate attenuation’s adjustable range – 80 Customized dB
straight suppression ratio 60 80 – dBc
triple transit signals No
Operating Temperature Range -40 – 70 ℃ Customized with quality grade
Storage Temperature Rang -55 – 85 ℃
Simulate height vs. Temperature – – 7 ppm/℃
Simulate accuracy vs. Temperature – 3 6 %/℃ Can be compensated

Warmly welcome to contact us to know more about Radio Altimeter Simulator and visit our factory at any time. Please feel free to let us know if there are any questions in Business.
