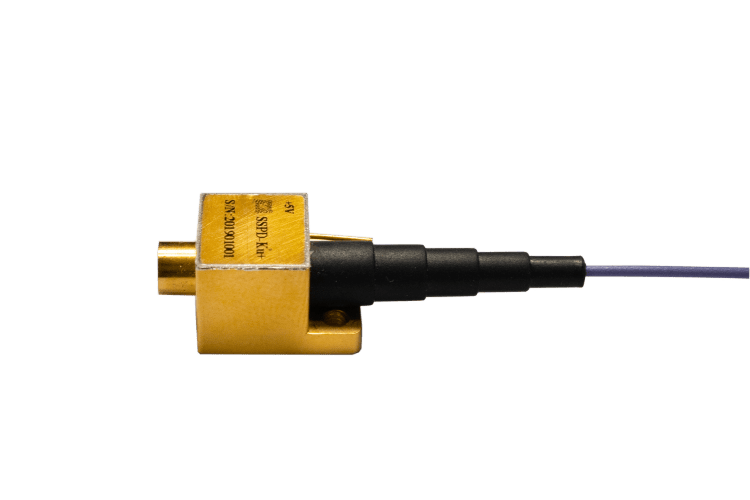

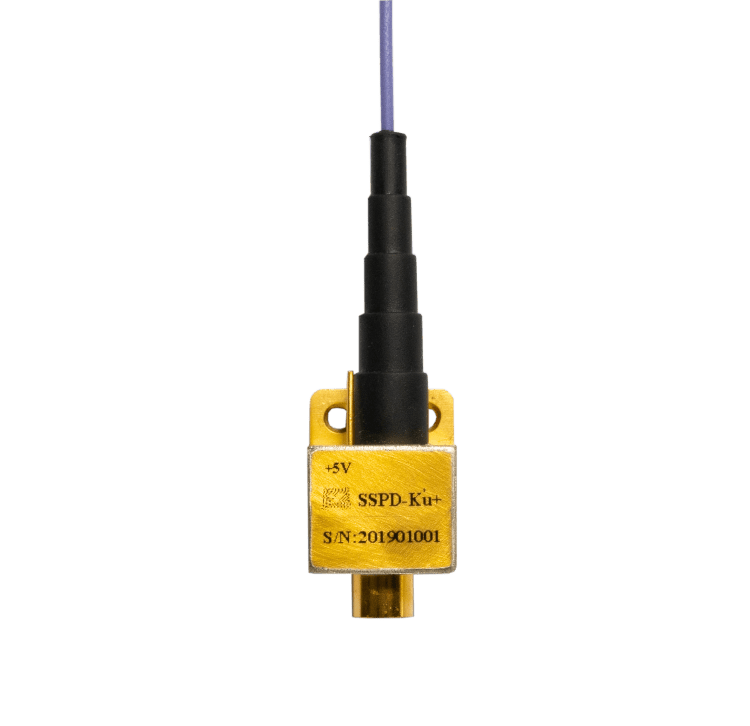

SSPD Mini-High Speed InGaAs Photo Detectors

SSPD high-speed detector module is designed for both digital and analog applications. The module contains an InGaAs PIN photodiode whose response wavelength covers 1000 to 1650 nm and necessary matching electronics. Bandwidth 20 GHz, RF output: SMP compatible connector, Weighs less than 8 grams, Mini model.

Attachment


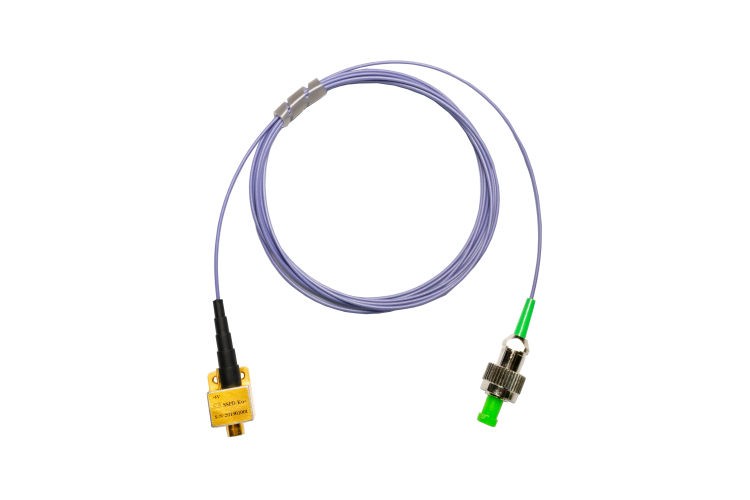

Introduce Of SSPD InGaAs Photo Detector

The SSPD high-speed Photo Detector is designed for both digital and analog applications. The module contains an InGaAs PIN photodiode in which the response wavelength covers 1000 to 1650 nm and necessary matching electronics.

NEON’s SSPD can provide a bandwidth of 20 GHz. The module operates on +5 V. It complies with a standard single-mode 9 / 125 μm fiber input. The RF output port is an SMP-compatible connector matched by 50-ohm impedance.

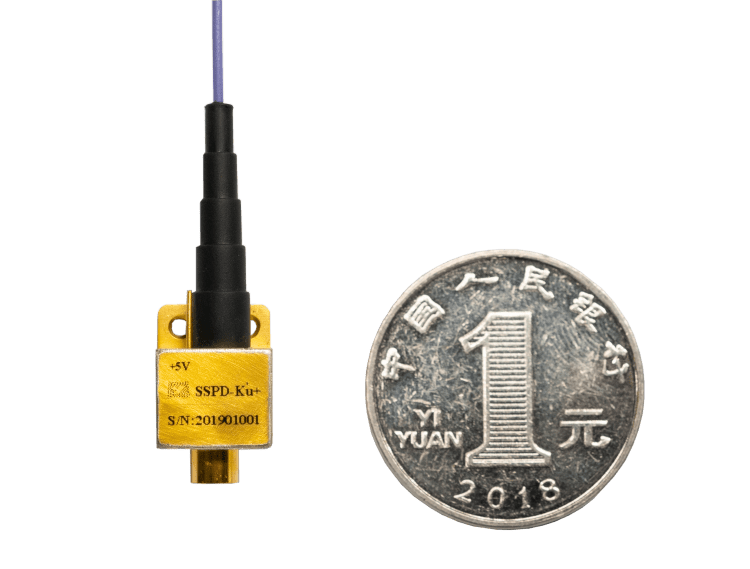

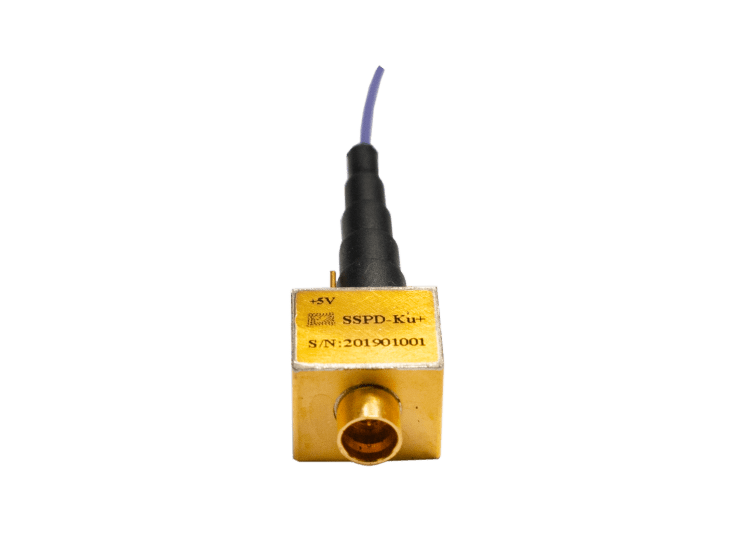

SSPD is hermetically sealed in a small house and weighs less than 8 grams.

Applications of SSPD InGaAs Photo Detector

High-speed Optical-fiber Communication

Radar Information Processing

Electronic Warfare

High-speed Signal Test and Measurement

Features of SSPD Photo Detector

Wide Bandwidth

High Responsivity

Incorporated Bias-T

High saturation Input

Hermetically Sealed, SMP Connector

Product Selection

Typical & Absolute Maximum Rating
Parameter Sym. Typ Rating Unit
Storage temperature TSTG -45 ~ +85 -55 ~ +100
Operating temperature TC 25 -40 ~ +85
Bias Voltage VR +5 +5  +9 V
Optical Input Power Pin +3 +10 dBm
Burn-out Optical Power PB +13 dBm
Lead soldering temperature Tp 280(10s) 330(10s)

Electrical/Optical Characteristics ( TC = 22 ± 3℃ )

Parameter

Sym

Test Condition

Parameter Values

Unit

Wavelength Range

λ

1000 1650

nm

Frequency Range

Ku+  Band

Small Signal Bandwidth

f-3dB

TC = 22 ± 3℃

0.3 20

GHz

Responsivity

Re

VR = +5 V, Pin = 1mW

λ = 1310 nm

≥ 0.9

A/W

λ = 1550 nm

≥ 0.85

Amplitude Flatness

A

TC =-40+85

±2

dB

Saturation Optical Power

Ps

VR =5V , λ = 1550nm AC Modulated

+7

dBm

Saturation RF Output Power

Pout

-10

dBm

Output VSWR

VSWR

≤ 2.2

Dark Current

Id

VR =+5 V

≤ 10

nA

Output Impedance

RL

50

Ω

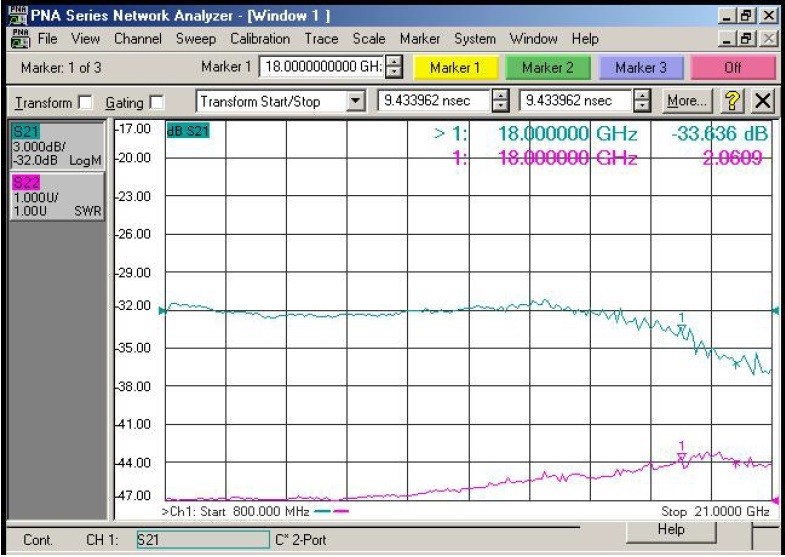

Typical Response Curves

 photodetector typical response curves

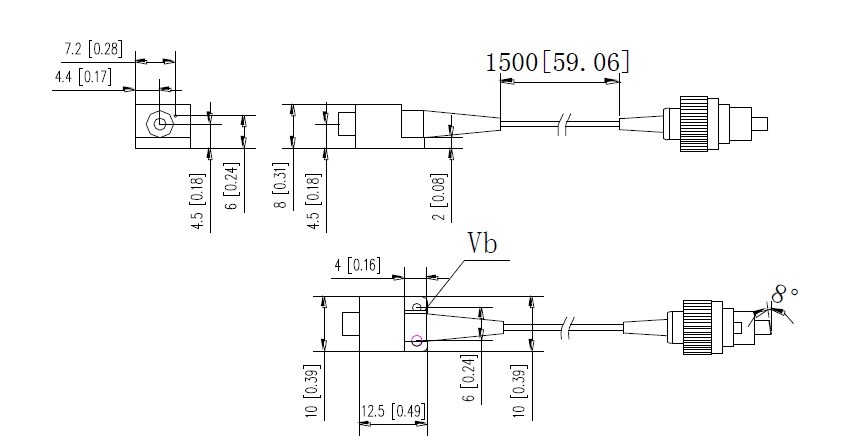

Dimension and Pins ( Unit: mm[inch] )

photodetectors dimension and pins

RF Connector: SMP

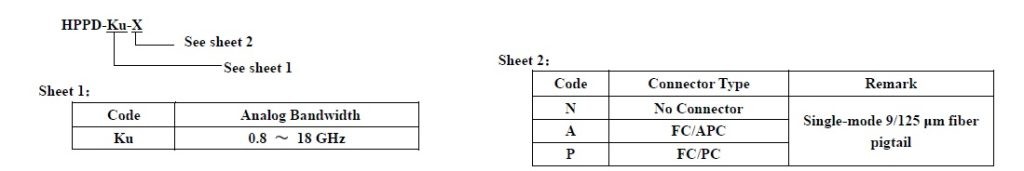

Model Information

1202770683412471810

Precautions

  1. The fiber bending radius no less than 20mm for avoiding fiber damage.
  2. Be sure the fiber coupling facet is clean before connecting it to Opto-circuit.
  3. Suitable ESD protection is required in storage, transportation, and use.
