HIGH SPEED DFB DML LASER SERIES

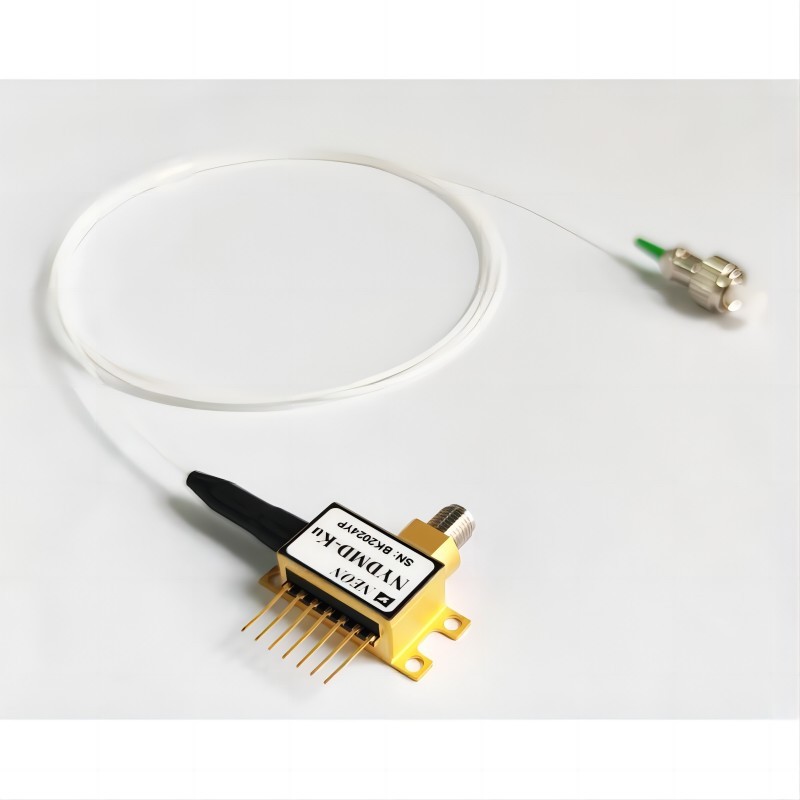

Introduction of DFB Laser Diode Module
NEON‘s High-Speed DFB DML laser diode includes NY13D, NY15D, NYCMD, and NY55D series.
NY13D, NY15D, and NYCMD series laser diode module is a directly modulated DFB laser that provides exceptional performance for linear fiber optics communications in very wide bandwidth applications. Their linear fiber optic lasers are an excellent alternative to using coaxial cable systems to transmit 12 GHz or 18 GHz signals. They offer significant improvements in the reliability of microwave communications networks by transmitting the RF signal in its original format. As a result of these properties, laser products provide significant improvements in signal quality for a wide variety of applications including antenna remoting, telemetry, timing, reference signal distribution, measurement, and delay lines.
NY55D series high-power laser diode is characterized for use as a wavelength-selected source(CW optical source) in combination with the external modulators in CATV and DWDM networks, especially for super trunking and distribution. Selected wavelengths comply with ITU Grid recommendations, both in range and in channel definition. Besides, NY55D can provide high optical output power to 100 mW.
Application of Laser Diode Module
- Antenna Remoting
- Cellular and PCS Networks
- Analog RF links transmission
- Military Communications
- Tracking, Telemetry, and Control
Features of these Laser Diode
- 18 GHz Bandwidth
- Low threshold current
- High output power
- Operating case temperature: -40 to 70℃
- High reliability
Working Principle of DFB Laser Diode Module
When the injection current of the DFB laser diode module changes with the modulation signal, the carrier concentration in the laser cavity also changes. The optical gain varies with the carrier concentration in the active region so the optical power of the optical amplification output also changes.
Advantages of DFB Laser Diode Module
Our DFB DML laser diode module takes the advantage of good wavelength stability, good linearity, wide wavelength range, and high precision.
NEON is a supplier of highly engineered commercial and industrial off-the-shelf or customized modules designed for today’s high-speed optical communication network infrastructures and leading-edge defense systems. NEON pioneered RF photonics, microwave photonics, and optical delay line technology to effectively realize the feature of ultra-wideband, high dynamic range, integration of RF system, etc.
NEON is a force with the highest standard of precision manufacture, quality, and reliability. We have involved rigorous testing at each stage of the project to ensure quality. Besides, NEON has fully embraced the principles of Six Sigma and Lean manufacturing to achieve our goals for operational excellence and ISO 9001 certification.
Package&Shipment (the same as photodetector)
Parameter of NEON’s Laser Series
|Series||Model||Wavelength（nm）||Start Frequency（GHz）||Stop Frequency（GHz）||Optical Output Power（mW Typ）||Slope efficiency（W/A）||Input 1 dB Compression（dBm）||Rative Intensity Noise（dB/Hz）||Thershold current (mA Typ)||Operation current (mA Typ)||Return loss(VSWR)||RF connector||Operation temp.（℃）||Storage temp.（℃）|
Warmly welcome to contact us to know more about our laser diode module and visit our factory at any time. Please feel free to let us know if there are any questions in Business.
