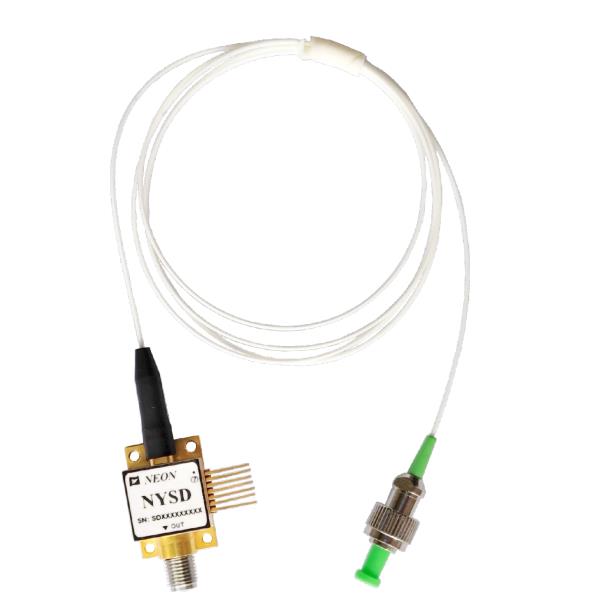

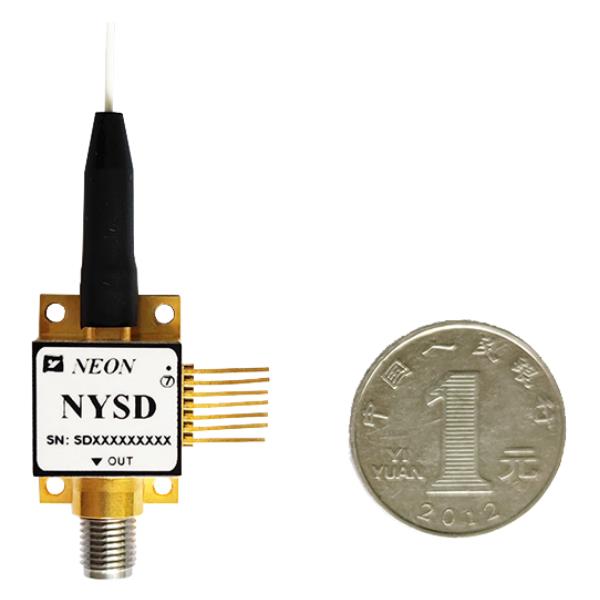

NYSD Series Mini UWB DML Laser Module
- NYSD series module is a mini directly modulated DFB laser that provides exceptional performance for linear fiber optics communications. It can provide wavelengths of 1310nm, 1550nm, and CWCM.
- NYSD series lasers are an excellent alternative to using coaxial cable systems to transmit 12GHz or 18GHz signals. They offer significant improvements in the reliability of microwave communications networks by transmitting the RF signal in its original format. As a result of these properties, laser products provide significant improvements in signal quality for a wide variety of applica tions including antenna remoting, telemetry, timing, reference signal distribution, measurement, and delay lines
- NYSD series laser built in optical isolator, TEC, thermistor, laser diode chip, and monitor photodiode are hermetically sealed in a 7PIN butterfly package.
Feature
- High-Dynamic-Range
- 18 GHz Bandwidth
- Low threshold current
- High output power
- 7pin butterfly package with SMA connector
- Operating case temperature: -40 to 70℃
- High reliability
- Low RIN
- Mini Size
Application
- Antenna Remoting
- Cellular and PCS Networks
- Analog RF links transmission
- Military Communications
- Tracking, Telemetry, and Control
Absolute Maximum Ratings
|
Parameter |
Symbol |
Min. |
Max. |
Unit |
|
Laser diode forward current |
If |
– |
120 |
mA |
|
Laser diode reverse voltage |
V |
– |
1 |
V |
|
Front power |
Pf |
– |
20 |
dBm |
|
PD reverse voltage |
V |
– |
15 |
V |
|
Forward current (PD) |
Im |
– |
2 |
mA |
|
Operation temperature |
To |
-40 |
70 |
°C |
|
Storage temperature |
Ts |
-55 |
85 |
°C |
|
Storage relative humidity |
Sr |
– |
85 |
% |
Electrical / Optical Characteristics (TC = 22±3℃)
| Parameter | Symbol | Test Condition | Min | Typ | Max | Units | Note |
| Wavelength | λ | IF= Iop, T = Top | 1310nm,1550nm,CWDM | nm | selected | ||
| Frequency | – | X band | 0.1 | – | 12 | GHz | – |
| Ku band | 1 | – | 18 | ||||
| Optical Output Power | P | IF=Iop | – | 10 | – | mW | 1 |
| Thershold current | Ith | – | – | – | 10 | mA | – |
| Operation current | Iop | – | – | 55 | 100 | mA | – |
| Operation voltage | Vop | – | – | 1.5 | 2.5 | V | – |
| Slope efficiency | SE | – | 0.2 | – | – | W/A | – |
| Side-mode suppression ratio | SMSR | IF=Iop | 30 | – | – | dB | – |
| Relative Intensity Noise | RIN | – | – | -150 | -130 | dB/Hz | – |
| Bandwidth (-3dB,I=60mA) | S21 | X band | – | 12 | – | GHz | – |
| Ku band | – | 18 | – | ||||
| Return loss（VSWR） | VSWR | X band | – | – | 2 | dB | – |
| Ku band | – | – | 2.2 | ||||
| Input 1 dB Compression | – | – | 15 | – | – | dBm | – |
| Thermistor Resistance | Rth | @25°C | – | 10 | – | Kohm | – |
| TEC current | It | – | – | – | 1.2 | A | 2 |
| TEC voltage | Vt | – | – | – | 2.5 | V | 2 |
| Capacitance (PD) | Ct | – | – | – | 20 | pF | – |
| Monitoring current | Im | – | 0.1 | – | 2 | mA | – |
| Dark current (PD) | Id | – | – | – | 50 | nA | – |
Notes: All laser chips come from wafers that have been certified using a representative lot of devices that must achieve an acceptable yield for burn-in.
- Laser temperature set 25℃, bias current at 55mA
- Operation case temperature -40~70℃

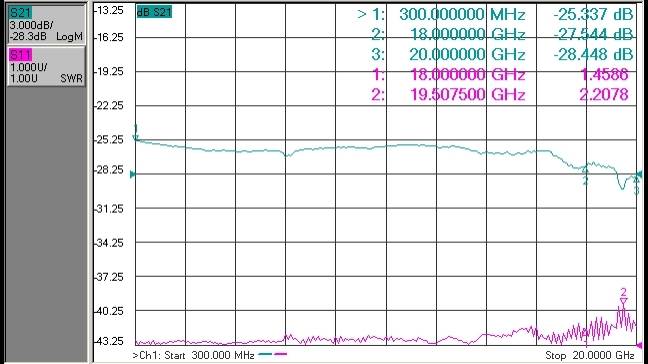

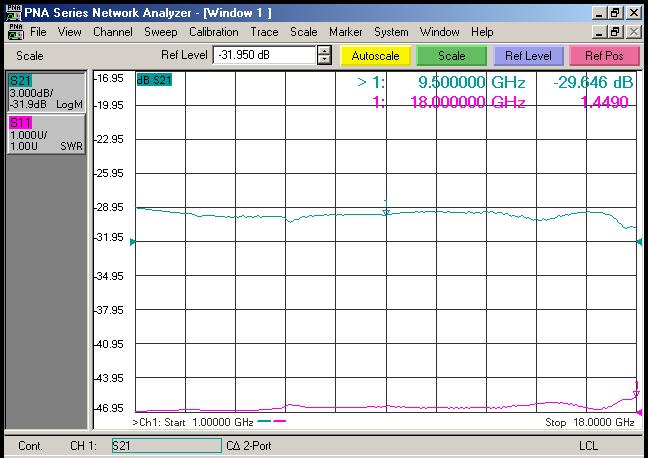

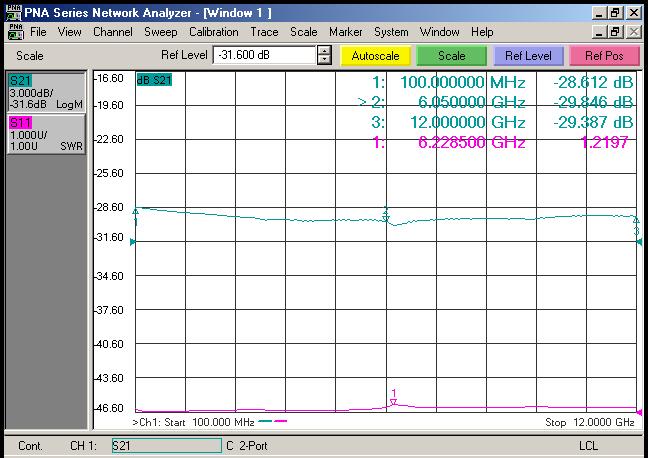

Typical Curve

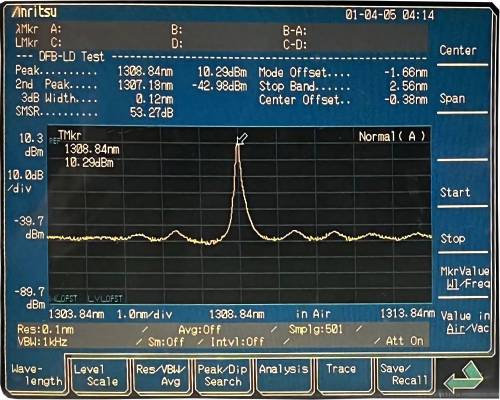

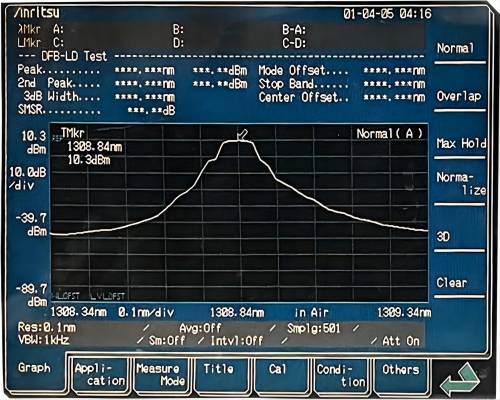

Typical Spectrogram

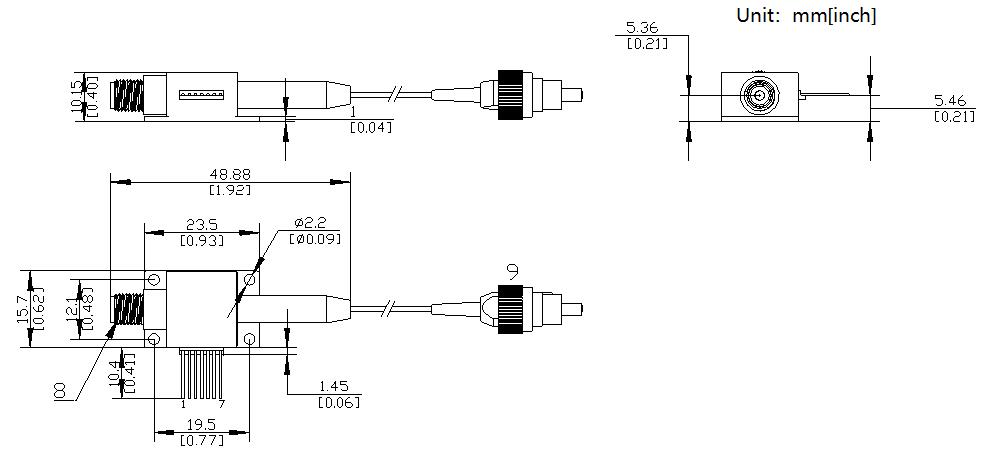

Dimension
Definition of Pin
|
Item |
Definition |
||||||||
|
Pin |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
|
Description |
PD- |
PD+ |
LD- |
Thermistor |
Thermistor |
TEC- |
TEC+ |
RF output |
Optical input |
|
Type |
— |
— |
— |
— |
— |
— |
— |
SMA-K |
FC/APC |

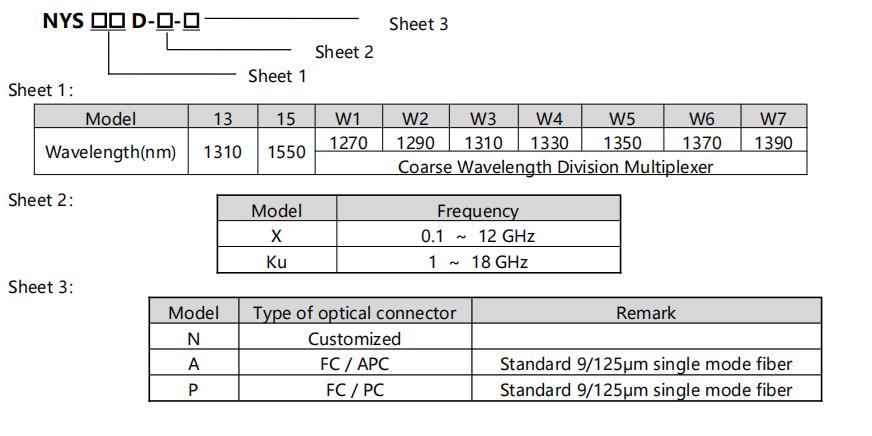

ORDER INFORMATION
