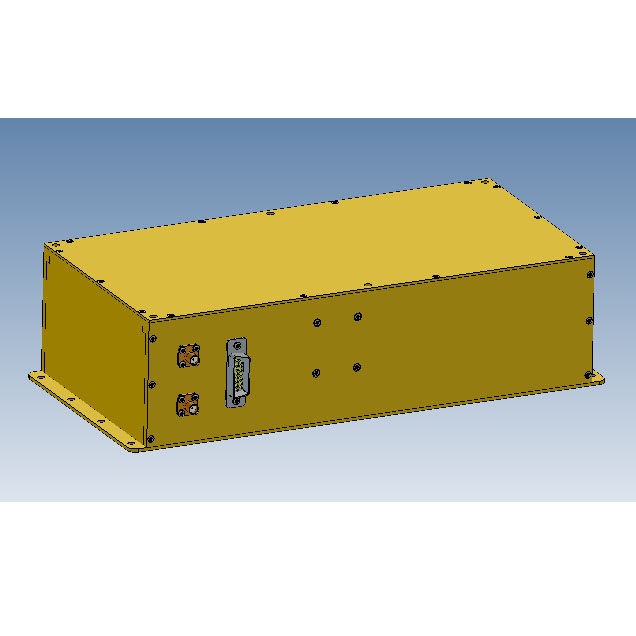

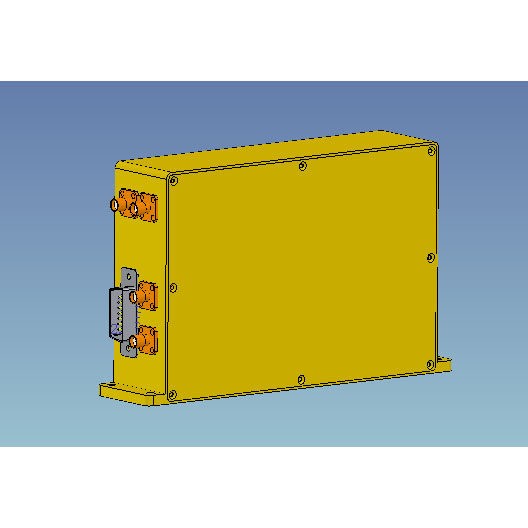

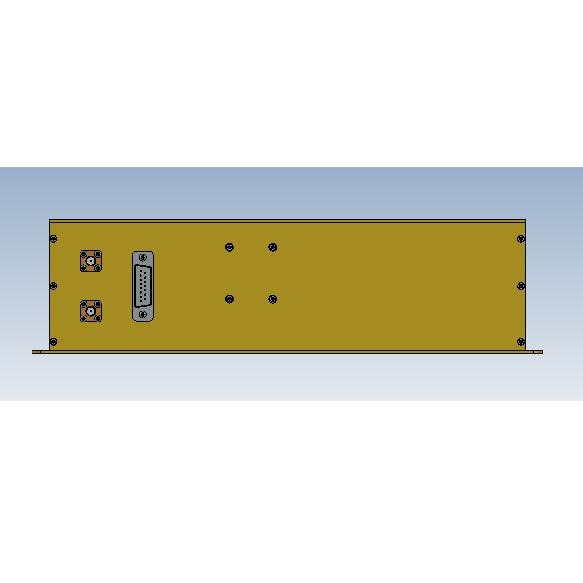

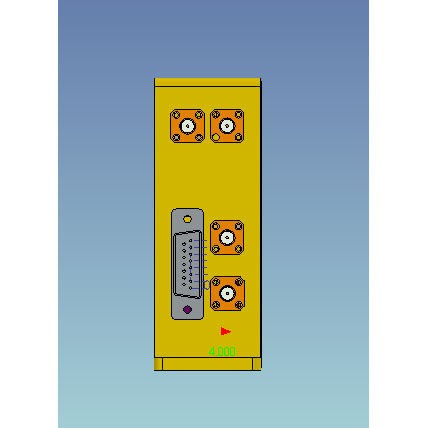

DS-HES-C Radio Altimeter Simulator (Core module)
- The core module of the DS-HES altimeter tester can be sold separately or integrated into higher-order assemblies. These assemblies can be configured to meet various performance specifications in order to be compatible with the customer’s form, fit, and function requirements.
- Compare with traditional SAM(surface acoustic wave) delay line systems, DS-HES series products have more advantages such as a wide working frequency band, high straight suppression ratio, triple transit signals that are immeasurable, long-life operation without calibration, and high work reliability.
Features of the Core module of the Altimeter Tester Simulator
※ Wide simulated height range(0 to 22000 above );
※ High simulate altimeter accuracy(≥1‰);
※ Optional simulate configuration(support more than 210 configurations);
※ Manual switch and automatic switch;
※ Volume miniaturization, strong electromagnetic compatibility, high work reliability;
※ Multiple control modes: UART, LAN, etc.
※ Various standard test platforms interfaces such as PXI, VXI, and LXI.
Application of the Altimeter Tester Simulator
Place: Radio altimeter for radar, AEW, satellite, helicopter, etc.
※ Measure the accuracy of the altimeter
※ Measure the sensitivity of research and tracking
※ Measurement of another parameter
Electrical/Optical Characteristics of the Altimeter Tester Simulator
| Parameter | Parameter values | Unit | Remark | ||
| Min | Typical | Max | |||
| Frequency range | 4 | – | 4.6 | GHz | |
| Amplitude response | – | ±1.5 | ±2 | dB | |
| Simulate height | 1 | – | 22000 | m | Extensible |
| Simulate height’s accuracy | 0.50% | 1% | – | – | |
| Maximum input power | – | 2 | Customized | W | Continuous wave |
| – | 100 | Customized | W | Pulse wave | |
| Input VSWR | – | 1.3 | 1.5 | – | |
| Output VSWR | – | 1.3 | 1.5 | – | |
| Impedance | – | 50 | – | Ω | |
| Simulate attenuation’s adjustable range | – | 80 | Customized | dB | |
| straight suppression ratio | 60 | 80 | – | dBc | |
| triple transit signals | No | ||||
| Operating Temperature Range | -40 | – | 70 | ℃ | Customized with quality grade |
| Storage Temperature Rang | -55 | – | 85 | ℃ | |
| Simulate height vs. Temperature | – | – | 7 | ppm/℃ | |
| Simulate accuracy vs. Temperature | – | 3 | 6 | %/℃ | Can be compensated |

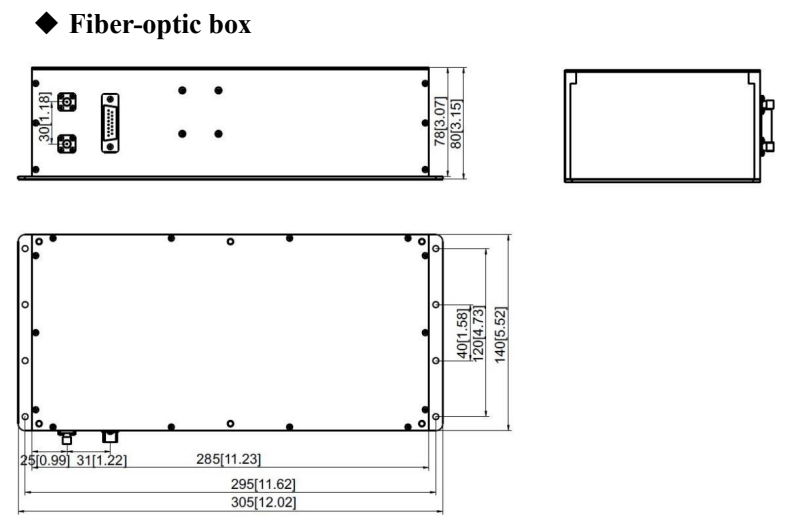

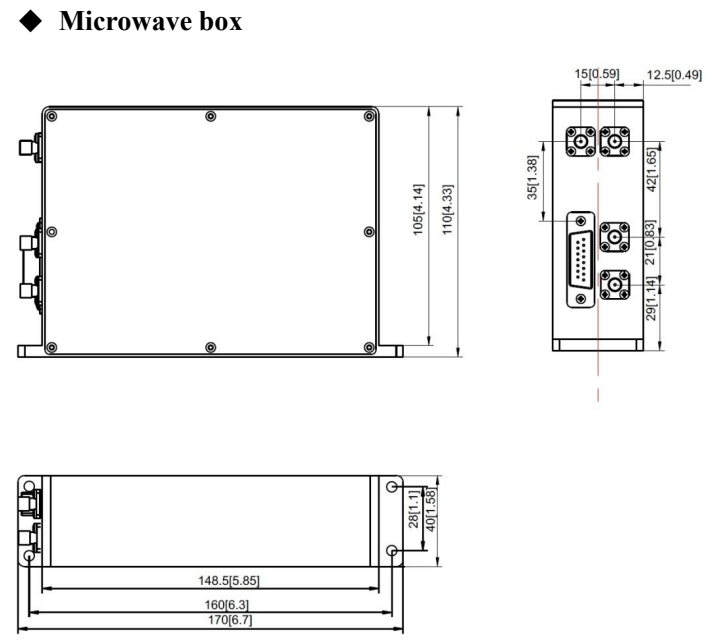

The packages and the pins (Unit: mm[inch])
RF connector： SMA-K（Customized）
DC connector： DE-9PS（Customized）
