TFLN Intensity Modulator (Integrated Light Source)
- High RF Bandwidth up-to 40 GHz
- Low half-wave voltage down-to 2V
- Low insertion loss down-to 4.5 dB
- Small device size
Attachment
The thin-film lithium niobate (TFLN) intensity modulator is an exceptional opto-electric converter device, which was developed in-house and showcased unparalleled performance. This device features thermal-optic bias control interface and is manufactured using advanced coupling and micro-electronic processes, and realizes high opto-electric conversion efficiency on TFLN. Compared to other commercial bulk lithium niobate-based modulators, our products provide superior characteristics on half-wave voltage, stability, and device size, significantly enhancing critical performance in digital optical communications and telecommunication networks.
Absolute Maximum Ratings
Working over maximum ratings could significantly reduce device reliability and cause irreversible damage.
| Parameters | Symbol | Min. | Max. | Unit |
| RF Input Power | Sin | – | 23 | dBm |
| RF Swing Voltage | Vpp | -4.465 | +4.465 | V |
| RF RMS Voltage | Vrms | – | 3.16 | V |
| Optical Input Power | Pin. max | – | 20 | dBm |
| Heater Bias Voltage | Vh | 0 | 5 | V |
| Storage Temperature | Ts | -40 | 85 | ℃ |
| Relative Humidity(no condensation) | RH | 5 | 90 | % |
Specifications
| Category | Parameters | Symbol | Unit | Performance | |
| Optical Features | Operating Wavelength(@ 25℃ 350mA) | λ | nm | 1550nm±2 | |
| Optical Extinction Ratio(@ DC) | ER | dB | ≥20 | ||
| Optical Return Loss | ORL | dB | ≤-27 | ||
| Optical Output Power(@ 25℃ 350mA) | Pout | dBm | ≤12 | ||
| Relative Noise Intensity | RINLD | dBc/Hz | Max: -158Typ: -160 | ||
| Electrical Features | 3 dB Bandwidth（from 2 GHz） | S21 | GHz | X1 : 2 | X1 : 4 |
| 20 | 40 | ||||
| RF Load | Rm | Ohm | 50±10 | ||
| RF Vπ （@ 50 KHz） | Vπ | V | Max: 3.5Typ: 3.0 | ||
| Heater Resistance | Rh | Ohm | 80±5 | ||
| Heater Pπ (@ DC) | Pπ | mw | ≤ 100 | ||
| RF Return Loss (10 MHz to 40 GHz) | S11 | dB | ≤ -10 | ||
| WorkCondition | Operating Temperature* | TO | °C | -40 ~ +75 | |
*Customization is available.
S21 & S11 Measurement (Typical)

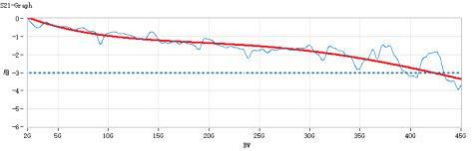

Figure 1: S21

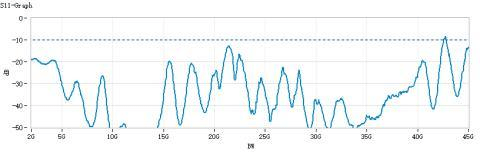

Figure 2: S11

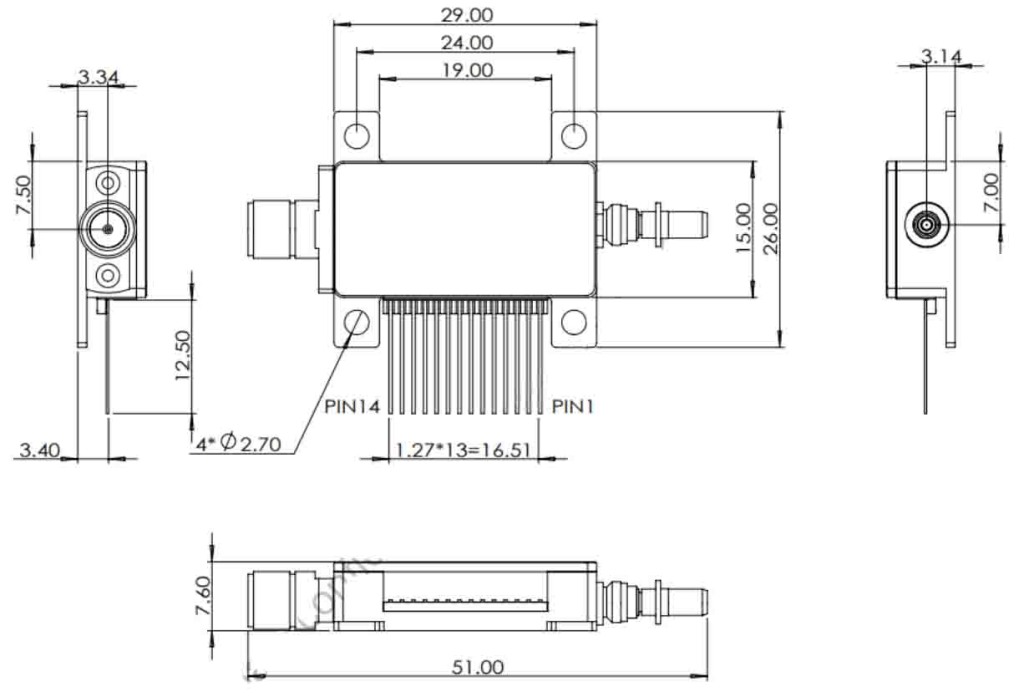

Package and Pins ( Unit: mm)
| PIN | Symbol | Description |
| 1 | TEC+ | Tec Positive |
| 2 | TEC- | Tec Negative |
| 3 | LD+ | Ld Positive |
| 4 | LD- | Ld Negative |
| 5 | NULL | – |
| 6 | NULL | – |
| 7 | Rth- | Bottom Of Thermistor |
| 8 | Rth+ | Top Of Thermistor |
| 9 | MPD0- | MZ modulator input optical power monitor MPD cathode |
| 10 | MPD1- | MZ modulator output optical power monitor MPD cathode |
| 11 | MPD0 & MPD1+ | MPD0 and MPD1 share the anode |
| 12 | Bias+ | Bias input positive |
| 13 | Bias- | Bias input negative |
| 14 | NULL | Optional shell ground |
| RF | RF connector | SMA, 1.85mm / 2.92mm |
| Out | Output fiber | SMF |
Ordering Information
P/N:LB-X1-CXNPBB61
| Optional Model | Description | Optional Code |
| X1 | RF 3dB Bandwidth | 2 or 4 |
Product Description: LiNbO3 TFLN intensity modulator device, polarization maintaining fiber as optical input and output.
