NYC10D Series DML DFB Laser Module

  • The NYC10D series DML laser module is composed of several key components: a DML DFB laser, an automatic optical power control circuit, an automatic temperature control circuit, a voltage stabilizing conversion circuit, and a monitoring indication circuit.
  • The high-speed DML DFB laser’s operating wavelength adheres to the ITU standard for dense wavelength division multiplexing (DWDM) wavelengths.
  • The modulation bandwidth surpasses 10GHz, and the output power exceeds 5mW.
  • The DML DFB laser module’s working power supply voltage is a single positive power supply that can function reliably within a voltage range of +7V to +36V.
  • This module incorporates an indicator system to signal normal power supply and normal optical power output.

Attachment


Feature

  • High-Dynamic-Range
  • Bandwide better than 10GHz
  • DWDM
  • Excellent wavelength stability
  • Operate temperature(-40℃~70℃)

Application

  • Antenna Remoting
  • Cellular and PCS Networks
  • Analog RF links transmission
  • Tracking, Telemetry, and Control
  • Broadband wireless communication
  • DWDM System

Absolute Maximum Ratings

Parameter

Symbol

Min.

Typ.

Max.

Unit

Storage temperature

TSTG

-55

+25

+85

Operation temperature

TC

-40

+25

+70

Input RF power1

Pin

+10

+20

dBm

Operation voltage

Vin

+7

12

+36

V

(1) Continuous wave (CW).

Optical and Electrical Specification (Tc=22±3℃)

Parameter Symbol Test condition Min. Typ. Max. Unit Remark
Wavelength λ 1527.99 1563.05 nm ITU Standard
Frequency3dB f3dB S band 0.1 3.5 GHz
C band 0.1 8.5 GHz
Optical Output Power P 5 10 mW
Relative Intensity Noise RIN -155 dBc/Hz
VSWR VSWR 2
Input 1 dB Compression +13 +15 dBm

PowerSupply (TC = 22±3℃)

Parameter

Min.

Typ.

Max.

Unit

Voltage

+7

+12

+36

V

Current2

0.07

0.1

1

A


(2) Test condition: Vin=+12V.

Typical Data

pic2

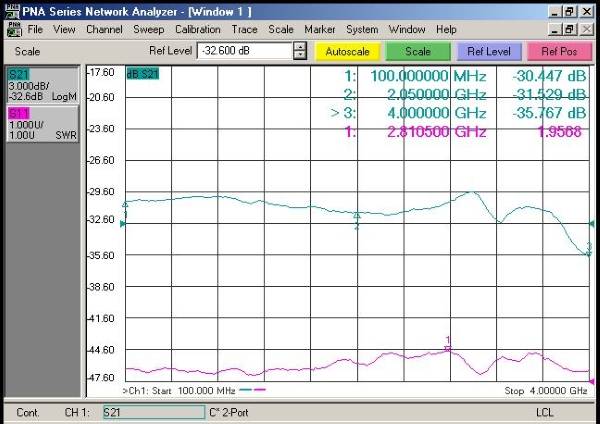

Fig. 1  NYC10D-S DML DFB Laser Typical Frequency Curve

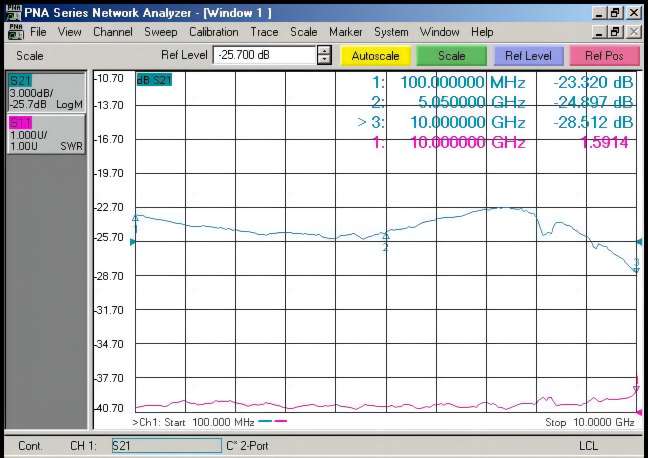

Fig. 2 NYC10D C DML DFB Laser Typical Frequency Curve
Fig. 2 NYC10D-C DML DFB Laser Typical Frequency Curve

Typical spectral curve

pic4

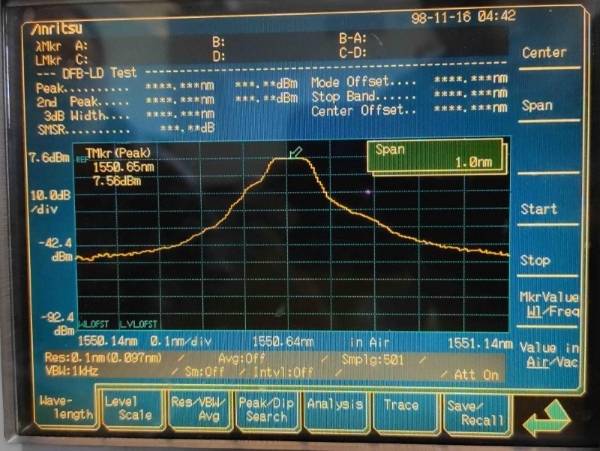

Fig. 3  NYC10D DML DFB Laser Typical Spectrum Curve

Dimension unit: mm[inch]

pic5 1

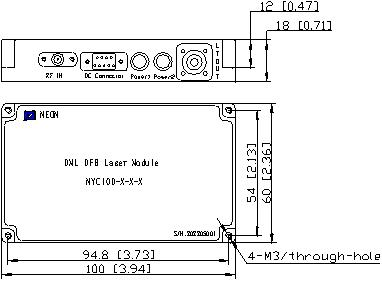

Figure 4  NYC10D DML DBF Laser Module Dimension

RF Connector: SMA

Power Connector: J30J-9-ZKP

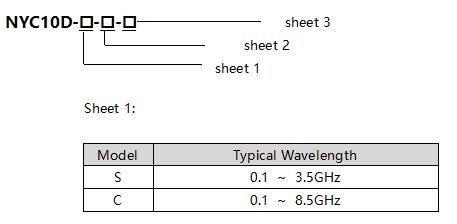

Order Information

pic6 1

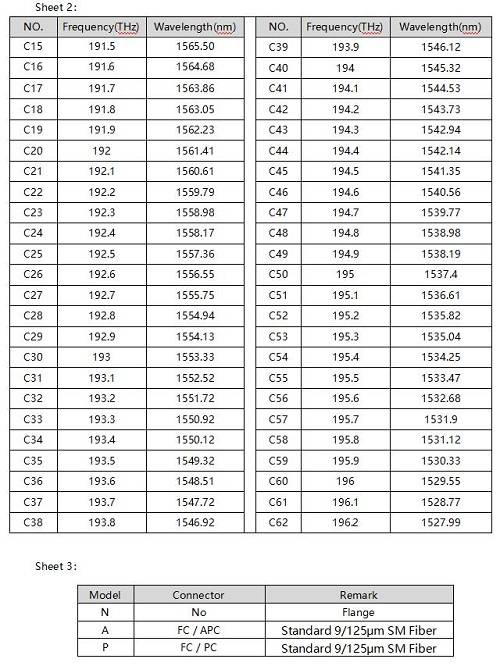

pic7 2
