NYC04D Series DML DFB Transmitter

The NYC04D series DML Transmitter is a high-performance laser module that is commonly used in optical communication systems. It consists of four main components: a DML DFB laser, an automatic optical power control circuit, a voltage stabilizing conversion circuit, and a monitoring indication circuit.

The DML DFB laser has a wavelength of 1270nm, 1290nm, 1310nm, 1330nm, 1350nm, or 1370nm. It has a modulation bandwidth of better than 4GHz and an output power of better than 2mW.

This module operates on a single positive power supply voltage of +7V to +36V. It has indicators for normal power supply and normal optical power output.

Attachment


Feature

  • High-Dynamic-Range
  • Bandwide better than 4GHz
  • CWDM
  • Low power consumption
  • Low cost

Application

  • Antenna Remoting
  • Cellular and PCS Networks
  • Analog RF links transmission
  • Tracking, Telemetry, and Control
  • Broadband wireless communication

Absolute Maximum Ratings

Parameter

Symbol

Min.

Typ.

Max.

Unit

Storage temperature

TSTG

-40

+25

+70

Operation temperature

TC

-20

+25

+55

Input RF power1

Pin

0

+17

dBm

Operation voltage

Vin

+7

+12

+36

V


(1) Continuous wave (CW).

Optical and Electrical Specification (Tc=25°C)

Parameter Model Symbol Min. Typ. Max. Unit Remark
Wavelength UC λ 1270 1310 1370 nm ITU Standard
LC CWDM
Frequency3dB f3dB 0.1 4 GHz
Optical Output Power P 1 mW
Relative Intensity Noise UC RIN -150 dBc/Hz
LC -155
VSWR VSWR 2
Input 1 dB Compression +10 dBm


PowerSupply (TC = 22±3℃)

Parameter

Min.

Typ.

Max.

Unit

Voltage

+7

+12

+36

V

Current2

0.03

0.1

0.15

A


(2) Test

(3) Condition: Vin=+12V

Typical Data

Fig. 1  NYC04D-CL DML DBF Laser Typical Frequency Curve
Fig. 2 NYC04D UC DML DBF Laser Typical Frequency Curve

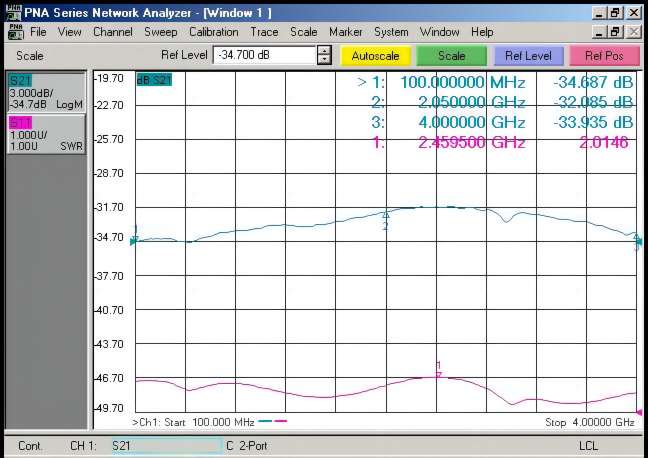

Fig. 2 NYC04D-UC DML DBF Laser Typical Frequency Curve

Typical spectral curve

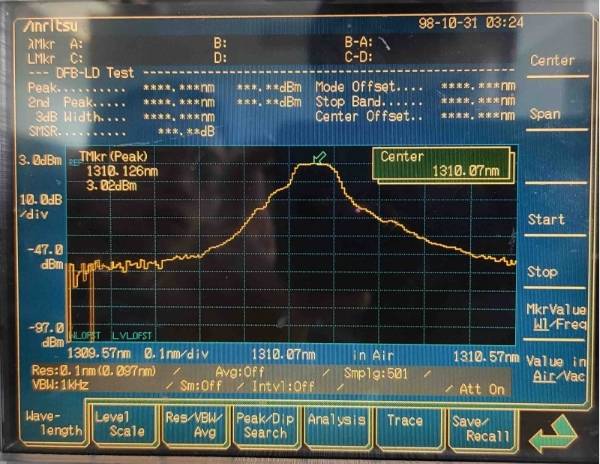

Fig. 3  NYC04D DML DBF Laser Typical spectrum Curve

Dimension unit: mm[inch]

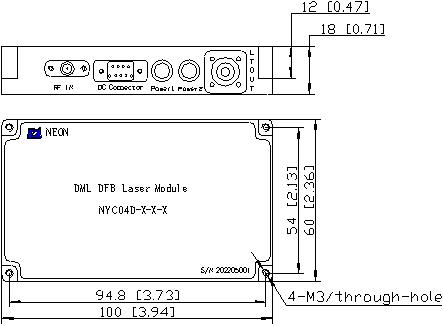

Figure 4  NYC04D DML DBF Transmitter Dimension

RF Connector: SMA

Power Connector: J30J-9-ZKP

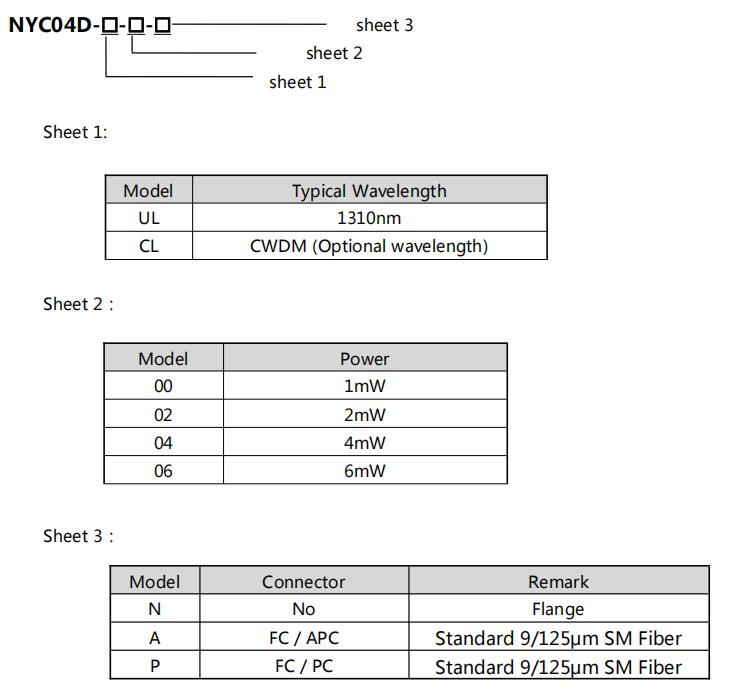

Order Information

Order Information
