NY55T Series High Power DWDM Transmitter
NY55T Transmitters are mainly composed of a high-power DFB laser, an automatic optical power control circuit, an automatic temperature control circuit, a voltage-stabilizing conversion circuit, and a monitoring and indicating circuit.
The wavelength of the module can cover the ITU channel wavelength table of the DWDM application. Maximum output power can reach 100mW; Low relative intensity noise. Take a good stability of output wavelength. The power supply of the NY55T Transmitter is a single positive power supply, which can work stably in the voltage range of +7V ~+36V.
Besides, the NY55T Transmitter also has the function of indicating that the power supply and optical power output are normal.
Features of DWDM Transmitter
- Up to 100mw high power output
- Low RIN
- Highly integrated, module packaging
- High Reliability
- Optional ITU wavelength
Applications of DWDM Transmitter
- Fiber optic communication
- Fiber optic sensing
- DWDM System
- Space optical communication
Absolute Maximum Ratings
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
|
Storage temperature |
TSTG |
-40 |
+25 |
+85 |
℃ |
|
Operation temperature |
TC |
-20 |
+25 |
+70 |
℃ |
|
Voltage |
Vin |
+7 |
+12 |
+36 |
V |
Optical and Electrical Specification (TC = 22±3℃)
|
Parameter |
Symbol |
Condition |
Min. |
Typ. |
Max. |
Unit |
|
Wavelength |
λ |
– |
– |
C Band |
– |
nm |
|
Light output power |
P |
– |
40 |
– |
100 |
mW |
|
Relative Intensity Noise |
RIN |
– |
– |
-163 |
-160 |
dBc/Hz |
|
Side-mode suppression ratio |
SMSR |
– |
30 |
– |
– |
dB |
|
Wavelength drift over TC Range |
∆λTOP |
T = TOP |
– |
– |
50 |
pm |
Power Supply (TC = 22±3℃)
|
Parameter |
Min. |
Typ. |
Max. |
Unit |
|
Voltage |
+7 |
+12 |
+36 |
V |
|
Current（1） |
0.3 |
0.6 |
1 |
A |

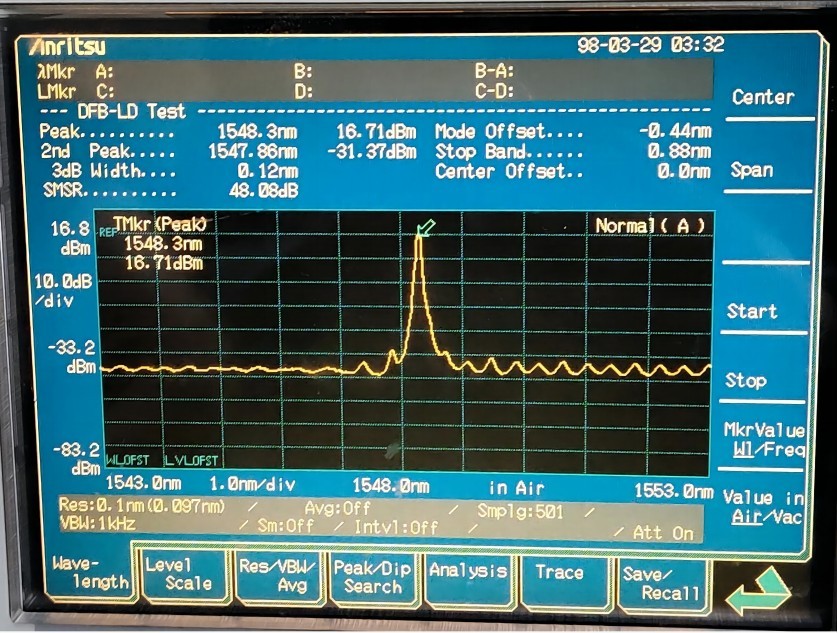

Typical Spectrogram

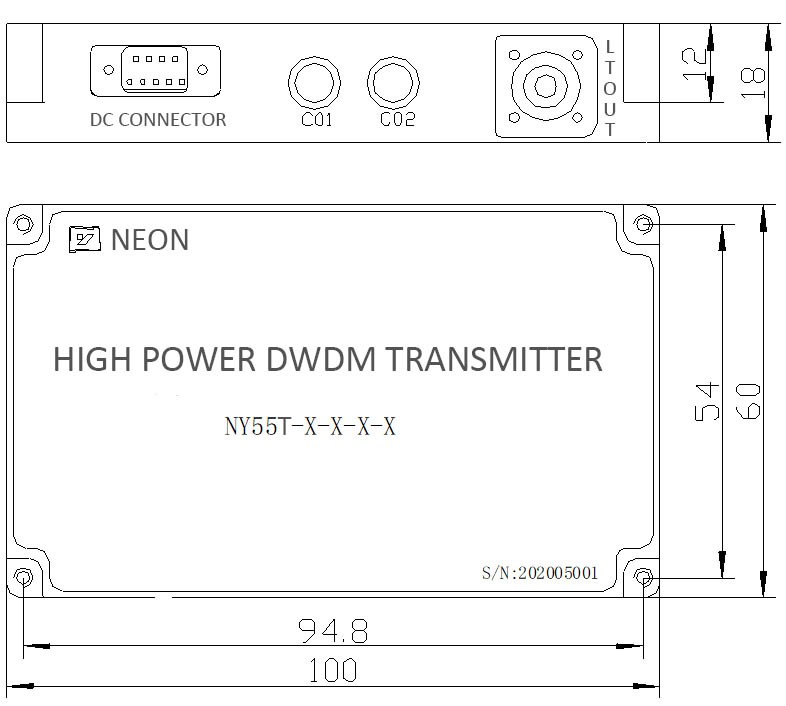

Dimension Unit: mm[inch]
RF Connector: SMA
Power Connector: J30J-9-ZKP
Pin Of Power Supply
|
Parameter |
Description |
||||||||
|
Pin |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
|
Voltage |
Vin |
NC |
GND |
NC |
|||||

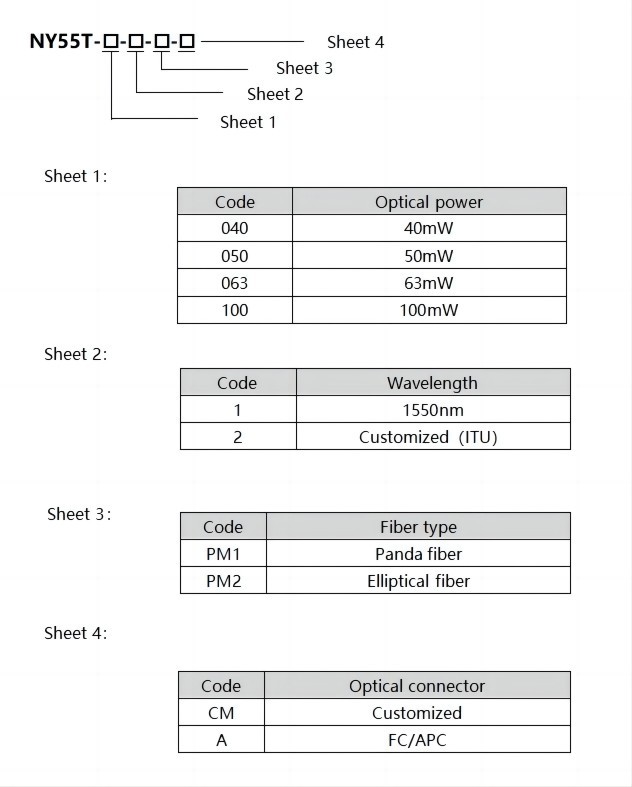

Order Information
