What is a Bidi Transceiver? A Complete Guide

With ever-higher requirements for high-speed data transmission in modern fiber optic communication technology, optical transceivers must be of ever-higher specs. Bidi Transceiver, with its excellent performance in fully utilizing the fiber, has been extensively applied to data centers, carrier networks, and enterprise communications networks.

In this article, we will give you a complete introduction of Bidi Transceivers, so that you can better understand and make a proper choice of optical modules. Let’s begin!

Part 1. What is a Bidi Transceiver?

A Bidi Transceiver, or a single-fiber bidirectional optical module, is a special fiber optic transceiver. Unlike the standard dual-fiber modules requiring two fibers, one for Tx and one for Rx, a Bidi transceiver uses only a single fiber to support two-way data transmission through Wavelength Division Multiplexing (WDM) technology.

The general concept is to utilize several wavelengths on a single fiber, transmission and reception each on a different wavelength. For example, a Bidi module may operate at Tx 1310nm / Rx 1550nm, and the other module in the reverse direction, Tx 1550nm / Rx 1310nm. Such modules will only be able to perform correct and effective communication when used in pairs.

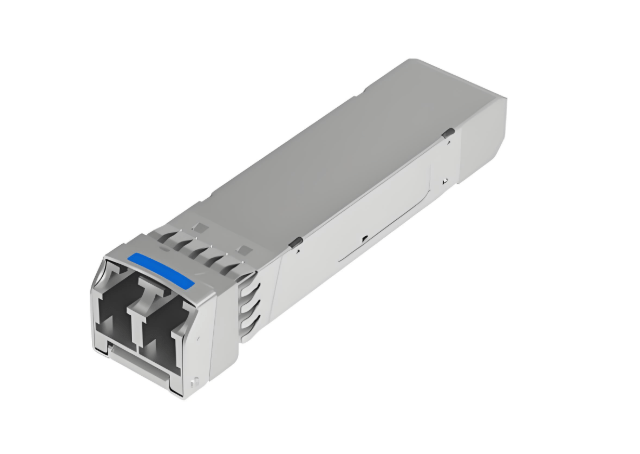

Part 2. Working Principle of a Bidi Transceiver

The fundamental of a Bidi Transceiver lies in its integrated Wavelength Division Multiplexing (WDM) coupler, or optical filter. This coupler is responsible for splitting and combining light signals with different wavelengths in a single fiber to enable simultaneous bidirectional transmission.

Transmission (Tx): The transceiver emits a laser beam at a certain wavelength (e.g., 1310nm) and pulsates it into optical fiber. The wavelength is reserved for the outgoing data stream.

Reception (Rx): At the same time, the transceiver also receives an incoming optical signal that is carried over a different wavelength (e.g., 1550nm) from the same fiber. The WDM coupler filters and leads this wavelength to the receiver side so that the signal is accurately received and reconverted into electric data.

Through the use of two disparate wavelengths in one fiber, Bidi transceivers offer what has been termed “one-fiber two-way transmission”. This technique not only halves the use of the existing fiber assets but also eliminates the need for additional cabling and equipment associated with dual-fiber systems.

As a result, deployment expenses can be reduced by a significant margin, cabling can be simplified, and the lifespan of bandwidth-constrained fiber networks can be extended, making Bidi technology best for metropolitan area networks, data centers, and enterprise communication.

Part 3. Common Types of Bidi Transceivers

Bidi Transceivers can be categorized in various ways based on transmission distance, form factor, and data rate. What is outlined below is an exhaustive description of most standard categories:

1. By Data Rate

1.25G Bidi SFP

SFP modules are designed for Gigabit Ethernet and access layer networks and find wide usage in enterprise LANs, campus networks, and FTTH applications. They provide a low-cost and dependable solution where moderate bandwidth is sufficient.

10G Bidi SFP+

Perfect for connecting data centers, metro Ethernet, and backbones, 10G Bidi modules offer both high-speed performance and fiber-saving efficiency. Their ability to deliver reliable 10Gbps links over a single fiber makes them a first choice in medium-to-large-scale networking.

25G / 40G / 100G Bidi QSFP

Designed for hyperscale data centers, high performance computing (HPC), and cloud computing, these Bidi modules at high speeds offer ultra-high data rates and even reduce the number of fibers required. They are particularly beneficial in scenarios where scalability and bandwidth requirements are intensifying continuously.

2. By Form Factor

SFP / SFP+ Bidi Modules

Most popular form factors that are suitable for 1G and 10G transmission. Their compact size and hot-swappable nature make them adaptable to upgrade or replace existing network infrastructures.

QSFP28 Bidi Modules

QSFP28 Bidi modules mainly applied in 100G high-bandwidth applications, such as huge data centers and telecommunication networks. But also can operate in 50G mode or 40G mode according to the need of networks.

QSFP28 Bidi modules are extensively utilized in high-bandwidth applications such as large data centers and carrier networks where fiber-saving and high density are of utmost priority.

3. Based on Transmission Distance

Short-Reach Bidi Modules

Transmission distances up to 10 km, they are extensively utilized in LANs (Local Area Networks), corporate communications systems, and intra-building data center interconnects. They deliver reliable connectivity at minimal expense for fiber resources.

Medium-Reach Bidi Modules

With options of reaching 40 km and above, these modules are used predominantly in metropolitan networks (MANs), inter-office networks, and data center inter-building links. They strike an appropriate balance between coverage and performance.

Long-Reach Bidi Modules

These modules can handle 80 km and above. These modules find their most suitable use in telecom carriers and backbone networks. These modules offer stable and long-distance communication while minimizing fiber infrastructure requirements.

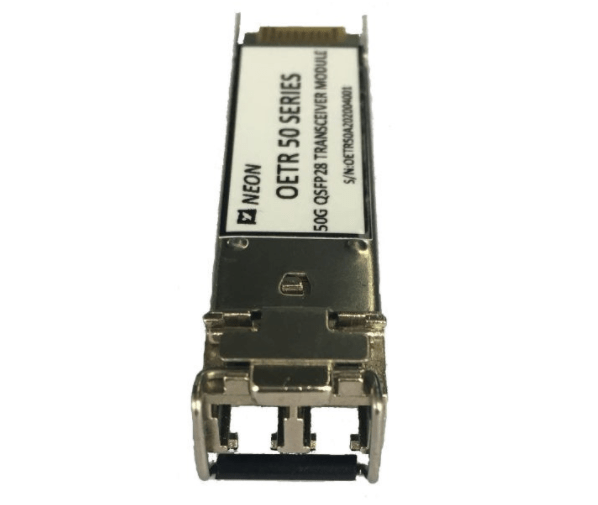

Part 4. Advantages of Using Bidi Transceivers

Compared with traditional dual-fiber optical modules, Bidi Transceivers come with numerous benefits that directly influence fiber utilization, cost-effectiveness, and adaptability in the network. The major advantages are outlined below:

1. Fiber Resource Savings

Two separate fibers are required in a typical setup, one for transmit (Tx) and the other for receive (Rx). But a Bidi Transceiver uses only one fiber in both directions using WDM technology. It basically reduces the requirement of half the fibers, which is especially beneficial where fiber resources are limited or expensive to install.

2. Cost Savings

By reducing the amount of fibers needed, Bidi solutions reduce not only the initial cabling investment, but also operational and maintenance costs. Less fibers equal less physical connections, patch panels, and maintenance points, resulting in a staggering decrease in overall network expense.

3. Simpler Network Installation

Bidi modules are ideal for fiber-constrained environments such as city centers, historical buildings, or high-density data centers where it may be difficult or impractical to install additional fiber. Single-fiber transmission implies that the network topology is more compact and installation is faster and more agile.

4. High Compatibility and Reliability

Modern Bidi Transceivers are designed to be highly compatible with the most popular switches and routers from leading network vendors. They can be simply integrated into existing infrastructures without sacrificing stable operation or guaranteed performance. With advanced optical design and proven WDM filtering, Bidi modules guarantee reliable connection even in demanding scenarios.

Part 5. Comparison Between Bidi Transceivers and Duplex Transceivers

Feature	Bidi Transceiver (Single-Fiber)	Duplex Transceiver (Dual-Fiber)
Number of Fibers	1	2
Transmission Method	Bidirectional on a single fiber through various wavelengths	Unidirectional on two separate fibers (Tx and Rx)
Use of Fiber	High	Lower
Cost	Lower, due to reduced fiber cabling	Higher, requires more fiber and infrastructure
Typical Application	Networks with limited fiber resources	Networks where fiber availability is sufficient

As the table shows, where fiber resources are limited or expensive, Bidi Transceivers come with evident advantages. They maximize the use of available fibers, reduce deployment costs, and simplify network installations, yet ensure reliable high-speed connections.

Part 6. Applications of Bidi Transceivers

Bidi Transceivers are increasingly being adopted across an extensive variety of network applications due to their high fiber efficiency, cost-effectiveness, and ease of installation. Typical uses include:

1. Data Center Interconnect (DCI)

In data centers, multiple racks and clusters of servers require fast connectivity. Bidi Transceivers make efficient use of fibers in and between data halls, reducing cabling and delivering reliable 1G, 10G, 25G, or greater-speed connectivity. They make network management simple and support scalable growth.

2. Carrier and Service Provider Networks

Telecom operators use Bidi modules in FTTx (Fiber to the x), metropolitan area networks (MANs), and backbone networks. As a method of bidirectional transmission on a single fiber, operators can extend coverage, reduce infrastructure expenses, and control long-distance optical links well.

3. Enterprise Campus Networks

Several inter-building or inter-floor connections are normally necessary in large business campuses. Bidi Transceivers deployment helps minimize fiber cabling needed, simplify installation, minimize CapEx and OpEx, and preserve network quality.

4. Fiber-Constrained Environments

In places or campuses where fiber assets are scarce or expensive to install, Bidi modules maximize the value of existing fibers. This makes them ideal for retrofitting existing legacy networks or adding high-speed connectivity where installing new fiber is challenging or too costly.

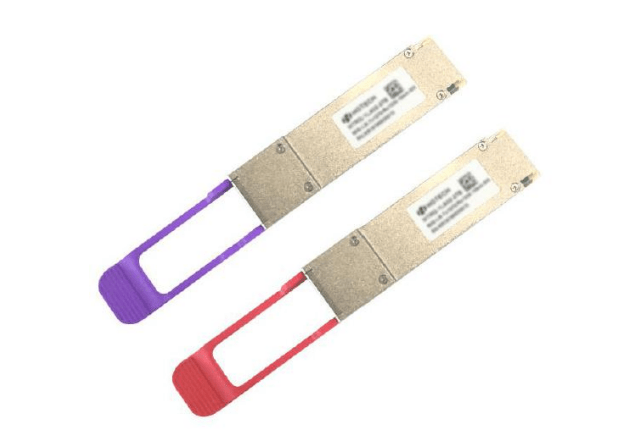

Part 7. How to Pick the Proper Bidi Transceiver?

The selection of an appropriate Bidi Transceiver is a key decision that requires due attention to the network demands, compatibility, and deployment scenario. To make the correct choice, remember the following:

1. Determine the Required Data Rate

Bidi Transceivers come with speeds from 1G, 10G, 25G, 40G, 50G, to 100G. Choose the module that is capable of satisfying your network’s bandwidth demand:

• 1G / 10G for normal enterprise or access networks.
• 25G / 50G / 100G for data center interconnects, high-performance computing, or carrier-grade backbone networks.

2. Provide Transmission Distance

Various Bidi modules support various link distances:

• Short-reach modules (up to 10 km) for LAN or intra-building links.
• Medium-reach modules (up to 40 km) for metropolitan area networks or inter-building links.
• Long-reach modules (up to 80 km or more) for telecom backbones and long-haul links.

Ensure the module selected has the ability to uniformly cover your intended fiber distance without signal degradation.

3. Wavelength Pairing Validation

All Bidi modules employ provided transmit (Tx) and receive (Rx) wavelengths. Modules must be optimally paired (e.g., Tx 1310nm / Rx 1550nm and Tx 1550nm / Rx 1310nm) to ensure proper bidirectional communication. Inappropriate pairing will result in network failure.

4. Device Validation

Make sure that your chosen Bidi Transceiver is supported by your switches, routers, or other network equipment. Although most of the recent transceivers are compatible with top vendors, vendor compatibility ensures proper working and removes connectivity issues.

5. Consider Supplier and Support

Select modules from reputable manufacturers who provide quality assurance, warranty, and technical support. Trustworthy suppliers include installation guides, troubleshooting, and firmware or interoperability issues, resulting in long-term network reliability.

Final Thoughts

Being a significant piece of effective fiber utilization equipment, the Bidi Transceiver provides two-way transmission on one fiber and is essential in reducing costs, saving fiber resources, and making networks more flexible. Bidi modules provide reliable and high-performance connectivity in data centers, carrier networks, or enterprise networks.

If you require a high-performance and dependable Bidi Transceiver solution, you can be assured that Neon will deliver the long-term stability and seamless operation of your network.
