How DWDM in Optical Fiber Transforms Communication?
With the world as interconnected as it is today, fiber optic communication is the pillar of the Internet, cloud computing, and 5G. However, with ongoing expansion of data traffic, the bandwidth of regular optical fibers is gradually coming close to its capacity threshold.
DWDM in optical fiber is nowadays a solution, and it is possible to carry numerous optical signals with various wavelengths via a single fiber, dramatically improving network capacity and transmission efficiency. In this article, there will be a detailed explanation of DWDM working principle, application scenarios, advantages, and future trends. Let’s go!

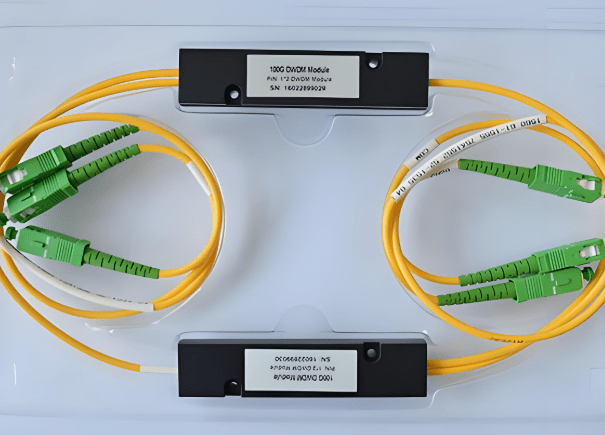

Part 1. What is DWDM?
DWDM (Dense Wavelength Division Multiplexing) is a newer form of technology in transmitting through optical fiber. It allows a greater throughput of data to be transferred parallelly by combining different optical signals of different wavelengths through a single fiber. As against the older form of single-wavelength transmission, DWDM seamlessly boosts the transmission capacity of optical fibers by dozens or even several hundred times.
DWDM has smaller channel spacing ( 0.8nm or 0.4nm) and thus have greater multiplexing capabilities than CWDM (Coarse Wavelength Division Multiplexing). This gives DWDM an enormous advantage in mass-scale data center networks and telecommunications.
Key Parts of a DWDM System
- DWDM Transmitter: Employed to translate electrical to optical signals at designated wavelengths, the transmitter is the initial entry point of a DWDM network. The health of the DWDM transmitter itself has a direct influence on the stability and performance of the entire system. High-performance transmitters ensure accurate wavelengths and stable signals, making it possible to have higher data rates as well as increased transmission distances.
- Optical Multiplexer/Demultiplexer (MUX/DEMUX): Used for multiplexing multiple wavelengths onto a single fiber for transmission and then demultiplexing them to individual channels on arrival.
- Optical Amplifiers (EDFA/Raman): Intensity amplify optical signals to transmit over long distances.
- Optical Fiber Link: Serves as the medium to convey and transport the optical signals.
Among these factors, the DWDM transmitter is particularly important since its efficiency will decide the overall reliability as well as efficiency of the DWDM system.
Part 2. How DWDM Works in Optical Fiber?
The core principle of DWDM technology remains to this day using independent data streams of different wavelengths of light and sending them simultaneously along an optical fiber. The working of this technology can be summarized in a number of processes:
Signal Conversion at the DWDM Transmitter
The DWDM system starts with a DWDM transmitter which takes incoming electrical data signals and converts them into an optical signal. Each channel is assigned a specific light wave. Preferably, light frequencies within the L-band or C-band are used so that the channels can be properly separated with minimal interference.
Multiplexing of Optical Signals
These light signals of varying wavelengths are then multiplexed by an optical multiplexer. Several wavelengths are multiplexed into a single optical fiber by the multiplexer, generating a high-capacity composite stream of lights.
Long-Haul Transmission with Optical Amplification
Multiplexed signal is transmitted through the optical fiber for great distances. Optical signal attenuates on transmission and hence weakens.
In order to counter this, technologies such as Erbium-Doped Fiber Amplifiers (EDFA) and Raman amplifiers are utilized to amplify the signal without converting it back to electrical form, hence maintaining efficiency and decreasing latency.
Demultiplexing of Optical Signals
At the receiving end, an optical demultiplexer separates the combined optical signal into separate wavelengths. Each wavelength corresponds to one data channel.
Signal Conversion at the Receiver
Finally, the individual optical signals are once again converted into electrical signals by the receiver and passed on to routers, switches, or other network devices for further processing and utilization.
Therefore, DWDM permits a single optical fiber to carry many, perhaps even hundreds, of wavelengths concurrently. Each virtual channel can have a independent wavelength, thereby increasing the channel capacity manifold.
DWDM is perhaps the most important technology used in optical fiber communications in an attempt to satisfy the growing requirements of internet bandwidth, cloud computing, and 5G networks.

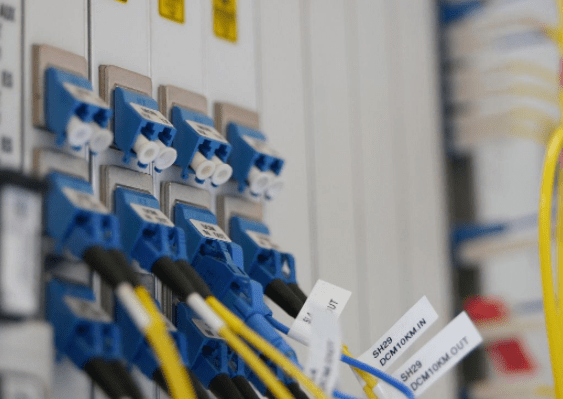

Part 3. Key Advantages of DWDM in Optical Fiber
Learn the most important advantages of DWDM in optical fiber, a technology that exponentially boosts the capacity of networks, accommodates multi-service transmission, and provides economical, long-distance, and scalable solutions for optical communications.
Ultra-High Bandwidth Scalability
One of the best advantages of DWDM is that it is capable of carrying dozens or even hundreds of wavelengths on a single optical fiber. Each wavelength can deliver high-speed data rates such as 10Gbps, 40Gbps, or 100Gbps, enabling massive parallel transmission. This makes DWDM over optical fiber an ideal solution for meeting the growing capacity requirement of high-capacity networks.
Cost-Effective Network Expansion
With DWDM over optical fiber, carriers are able to greatly increase network capacity without adding new fibers. That is a huge amount of CAPEX and OPEX savings, and it’s a very cost-efficient way of increasing existing networks.
Long-Distance Transmission
Together with optical amplifiers like EDFA or Raman amplifiers, DWDM over optical fiber supports ultra-long-haul transmission, including intercontinental connections and submarine cables. This capability offers secure, high-speed connectivity over long distances, an important DWDM advantage for global telecom and data center networks.
Multi-Service Transport
Another major DWDM advantage is that DWDM is capable of carrying various types of traffic on a single line. From IP data, video streams, to voice services, DWDM on optical fibers facilitates seamless multi-protocol transmission, paving the way for service convergence on a shared fiber infrastructure.
Flexible and Scalable Upgrades
DWDM networks are highly flexible. Carriers can add wavelengths as needed to accommodate traffic growth, without significant downtime to upgrade the network. This is perhaps the most valuable DWDM advantage, delivering future-proof high-capacity optical networks.
Part 4. Applications of DWDM in Optical Fiber
DWDM over optical fiber is used in many sectors since it provides low-latency, high-capacity, and dependable transmission. Some of the primary areas of application include:
1. Telecom Operator Core Networks
DWDM is the telecom operator backbone, supporting high-speed broadband, mobile backhaul, and 5G network traffic. It facilitates multiple high-capacity channels per fiber, allowing it to be efficient and scalable in network operations.
2. Data Center Interconnect (DCI)
Cloud computing, big data processing, and real-time processing of applications require ultra-high bandwidth in today’s data centers. DWDM in optical fiber supports seamless interconnection of data centers with swift, efficient, and high-capacity data transfer.
3. Submarine and International Optical Cable Networks
DWDM is a key technology applied in undersea and long-distance fiber optic cable networks to provide intercontinental and cross-border data transmission. Long-distance reach, combined with optical amplification, results in virtually no signal loss and high reliability over thousands of kilometers.
4. Financial and Healthcare Networks
Finance and healthcare sectors demand ultra-low-latency and secure networks for communications. DWDM provides dedicated high-speed links for stock markets, banking networks, and telemedicine services with speed and security.
5. Government and Military Networks
Reliable and secure transmission of confidential information is critical for government and military operations. DWDM using optical fiber ensures that confidential information is securely transmitted over long distances with high integrity and minimum opportunities for eavesdropping.

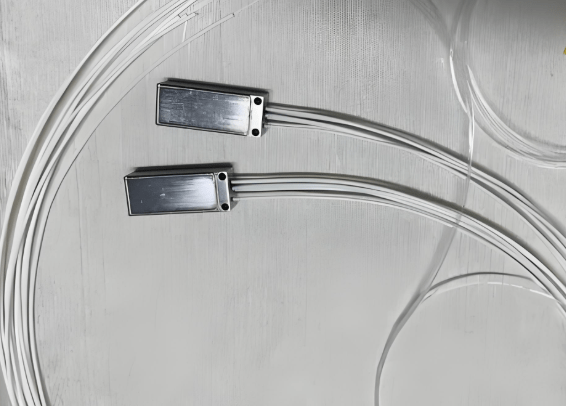

Part 5. Challenges That DWDM Are Facing
While DWDM using optical fiber offers a series of advantages, it is also connected to a series of challenges which network providers must face:
High Cost
The initial cost of DWDM devices, such as transmitters, MUX/DEMUX units, and optical amplifiers, can be significant. On top of this, regular maintenance and operational costs contribute to the overall expense, which means strategic budgeting is necessary for network rollout.
Technical Complexity
DWDM systems require precise management and friction on multiple technical components including, but not limited to, location of the wavelength, chromatic dispersion, and nonlinear effects of the fiber. Even the smallest discrepancies and degraded signals will affect performance and therefore require complex monitoring and engineering to guarantee optimal results.
Network Management Challenges
It may be difficult to handle high numbers of wavelengths in a DWDM network. Optimal wavelength channel allocation, routing, and scheduling demand sophisticated network management tools and features, especially as the network expands to accommodate higher capacity and multiple services.
Despite these constraints, DWDM remains a cornerstone technology for modern high-capacity optical networks with unmatched bandwidth, long-distance transmission, and multi-service capability if implemented adequately.
Part 6. Future Trends of DWDM in Optical Fiber
Optical fiber DWDM has a rosy future with swift developments fuelled by growing ultra-high-speed data transmission needs and intelligent network management. Future DWDM technology will offer even more capacities, transiting to single-wavelength rates of 400G, 1Tbps, or higher to support enormous data traffic in telcos, cloud, and data center networks.
Convergence with SDN (Software-Defined Networking) and AI-based algorithms will enable dynamic wavelength assignment, auto-network optimization, and proactive maintenance to make the networks smarter and responsive. Energy efficiency is another critical area of focus, where the introduction of low-power devices and eco-friendly technology will reduce the overall operational cost and carbon footprint.
Additionally, with 6G networks and the Internet of Things (IoT) going mainstream, DWDM will provide the high-speed, low-latency, highly reliable transmission platform required to support next-generation communications applications while delivering scalable and future-proof optical networks.
Bottom Line
Multi-wavelength optical technology in optical fiber spans modern communication infrastructures. The fiber alone multiplies both bandwidth and operational efficiencies by capitalizing on the simultaneous use of multiple wavelengths. DWDM technology remains central to the seamless operation of telecommunication and connectivity across data centers and even to undersea communication.
For optical fiber network builders and emerging network developers alike, the seamless expansion of optical networks and reliability of high performance DWDM transmitters are due to their underlying system resource stability and network resource elasticity. As networks continue to evolve further, DWDM technology will remain a top enabler in supporting global digital expansion.
