5 Technical Questions About Directly Modulated Lasers

Directly modulated lasers (DML lasers) are widely used in optical communications due to their simplicity and cost-effectiveness. These devices modulate their optical output by directly varying the current supplied to the laser diode, making them an essential component in fiber optic communication systems, particularly in high-speed data transmission for metropolitan networks and data centers. Understanding DML lasers requires diving into their key performance characteristics and the technical considerations that influence their behavior. This article will explore five critical technical questions to help you gain a deeper understanding of directly modulated lasers.

NEON DML lasers

1. What are the Key Performance Metrics of a Directly Modulated Laser?

Directly modulated lasers are valued for their ability to provide optical output modulation without the need for external modulators. However, their performance is defined by several key metrics, which can affect the overall efficiency and suitability for specific applications.

  • Modulation Bandwidth: The modulation bandwidth refers to the maximum frequency range over which the laser can reliably transmit data. The broader the bandwidth, the higher the data rates that can be supported. This is a crucial factor in applications like high-speed internet, where faster data rates are required.
  • Optical Output Power: This metric defines the amount of light power emitted by the laser. The optical output power must be strong enough to ensure that the signal can travel long distances without being too weak to be detected at the other end. Power levels must be balanced to avoid issues like signal attenuation or distortion.
  • Linewidth: The linewidth refers to the spectral width of the laser’s emission, and it impacts the coherence of the optical signal. Narrower line widths are typically better for applications that require precise signal fidelity, such as long-distance fiber optic communications.
  • Extinction Ratio: The extinction ratio measures the contrast between the “on” and “off” states during data transmission. A high extinction ratio ensures that there is a clear distinction between logical ones and zeros, reducing the probability of transmission errors. Low extinction ratios can lead to signal degradation and increased error rates in the communication system.
  • Thermal Stability: Since the performance of a DML laser can degrade with temperature changes, its ability to maintain stable output under varying thermal conditions is crucial. Some lasers include temperature control systems like thermoelectric coolers (TECs) to ensure consistent performance.
  • Chirp: Chirp is the frequency shift that occurs during modulation. In directly modulated lasers, this phenomenon can lead to pulse broadening and signal distortion, especially in long-distance transmission. Minimizing chirp is vital for maintaining signal integrity.

Each of these performance metrics interacts with the others, meaning that optimizing one aspect often involves trade-offs with another. Understanding these metrics is the first step in determining whether a directly modulated laser is right for your specific application.

Powerful Laser Diode

2. What Factors Influence the Modulation Bandwidth of a Directly Modulated Laser?

The modulation bandwidth of a DML laser is one of its most critical performance characteristics, determining the maximum data rate it can handle. Several factors influence this bandwidth:

  • Carrier Dynamics: The speed at which electrons and holes (charge carriers) are injected into the active region of the laser and recombined to generate photons directly impacts modulation bandwidth. Faster carrier dynamics allow the laser to respond more quickly to changes in the input current, resulting in higher modulation speeds.
  • Parasitic Capacitance and Resistance: Within the laser diode and its surrounding circuitry, parasitic capacitance and resistance can limit the speed at which the laser can modulate. These parasitic elements form an RC (resistor-capacitor) time constant that acts as a low-pass filter, limiting the modulation bandwidth. Reducing parasitic effects through optimized design and careful material selection is key to achieving higher bandwidths.
  • Laser Cavity Design: The physical structure of the laser cavity also influences the modulation bandwidth. Factors such as the length of the cavity, the type of reflective surfaces used, and the design of the active region all play a role in how quickly the laser can switch between different output levels.
  • Temperature: Higher temperatures tend to reduce the modulation bandwidth of DML lasers by affecting carrier dynamics and increasing parasitic effects. Thermal management systems, such as heat sinks and thermoelectric coolers (TECs), are often employed to maintain optimal operating temperatures and ensure stable modulation bandwidth.
  • Material Properties: The choice of semiconductor materials used in the laser diode affects the modulation bandwidth. Different materials exhibit different carrier recombination rates and thermal conductivities, which influence the overall speed of the laser. For example, InP-based lasers are commonly used in telecommunications due to their high-speed capabilities.

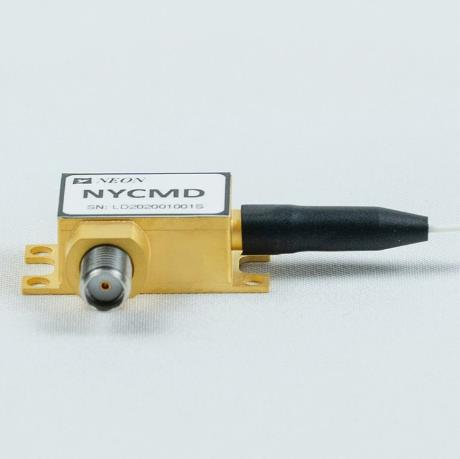

High power laser diode

3. How is the Optical Output Power of a Directly Modulated Laser Controlled?

The optical output power of a DML laser is a critical parameter, especially for long-distance communication where signal strength must be maintained over kilometers of optical fiber. Several methods are used to control and stabilize the optical output power:

  • Current Injection: The simplest way to control the output power of a DML laser is by adjusting the current supplied to the laser diode. As the current increases, more charge carriers are injected into the active region, resulting in greater photon emission and higher optical output power. However, excessive current can lead to overheating and accelerated degradation of the laser.
  • Temperature Control: As temperature increases, the efficiency of the laser decreases due to changes in carrier recombination rates and increased non-radiative processes. This effect can be mitigated by using temperature control systems such as thermoelectric coolers (TECs) or passive cooling mechanisms to maintain stable optical output.
  • Feedback Systems: Many DML lasers are equipped with integrated photodetectors or monitoring diodes that provide feedback to the driving circuitry. This feedback loop allows for real-time adjustments to the current or temperature to maintain a constant optical output power, compensating for any environmental or operational changes.
  • Power Modulation: During data transmission, the optical output power is varied by modulating the input current. This direct modulation allows the laser to encode data as light pulses, with the “on” state corresponding to high power and the “off” state to low power. Care must be taken to ensure that the power levels remain within safe operating limits to prevent damage to the laser.

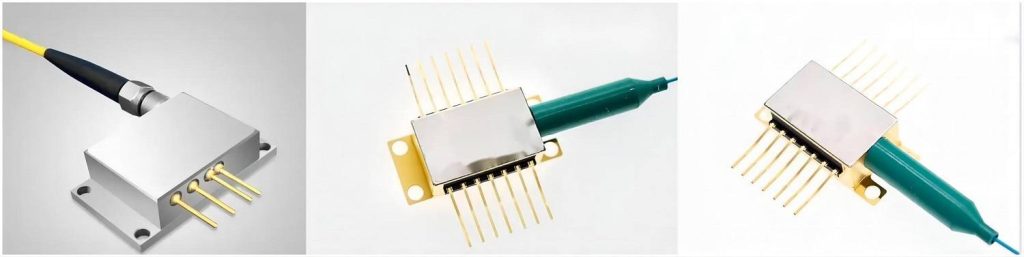

Fiber-Coupled Laser Diode Modules

4. What are the Typical Wavelength Ranges for Directly Modulated Lasers?

DMLs are available in a range of wavelengths, each suited to specific applications within optical communication:

  • Telecommunications Wavelengths: The two most common wavelength ranges for fiber optic communications are 1310 nm and 1550 nm. These wavelengths correspond to low-loss windows in optical fibers, making them ideal for long-distance communication. The 1310 nm range is often used for shorter-range applications due to its lower chromatic dispersion, while the 1550 nm range is preferred for longer distances due to its minimal signal attenuation.
  • 850 nm Wavelengths: Lasers operating at 850 nm are often used in short-reach, high-speed applications such as data centers. At this wavelength, the signal experiences higher attenuation but can still perform efficiently over short distances. This wavelength is also compatible with multimode fibers, making it a popular choice for high-speed local area networks (LANs).
  • Emerging Wavelength Ranges: In specialized applications such as visible light communication (VLC), directly modulated lasers operating in the visible spectrum are being explored. Other wavelengths may also be considered for specific uses like medical devices or sensing technologies, depending on the material properties and the desired application.

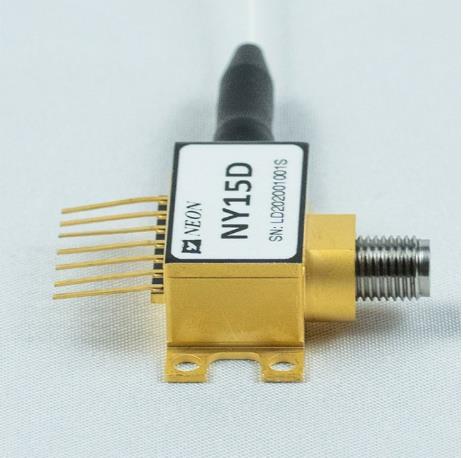

1550nm microwave DFB laser diode

5. What are the Reliability and Lifetime Considerations for Directly Modulated Lasers?

Reliability and longevity are critical factors for DML lasers, especially in high-demand applications such as telecommunications, where failures can result in significant downtime and maintenance costs.

  • Degradation Mechanisms: Over time, DML lasers can degrade due to several mechanisms, including high current densities, thermal effects, and material aging. These factors can lead to reduced optical output power, increased noise, and eventual failure of the laser diode.
  • Heat Dissipation: Managing heat is one of the most important aspects of ensuring the long-term reliability of a DML laser. Excessive heat can lead to thermal runaway, where increasing temperatures cause a further rise in current, leading to accelerated degradation. Proper heat sinks, cooling mechanisms, and careful design of the laser packaging are necessary to dissipate heat effectively.
  • Failure Modes: DML lasers can fail due to catastrophic optical damage (COD) in which the laser’s active region becomes damaged due to excessive optical power. This failure is often irreversible and is one of the leading causes of laser diode failure. Gradual degradation of the active region over time can also reduce the performance of the laser.
  • Design Improvements: Manufacturers are continually working to improve the durability of DML lasers through the use of more robust materials, advanced heat dissipation techniques, and optimized designs that minimize stress on the laser diode during operation.
  • Qualification Testing: To ensure the reliability and longevity of DML lasers, manufacturers subject these devices to rigorous testing. This includes accelerated aging tests, which simulate long-term use, and burn-in procedures, which identify early-life failures. These tests help ensure that DML lasers can meet the demanding requirements of modern optical communication systems.

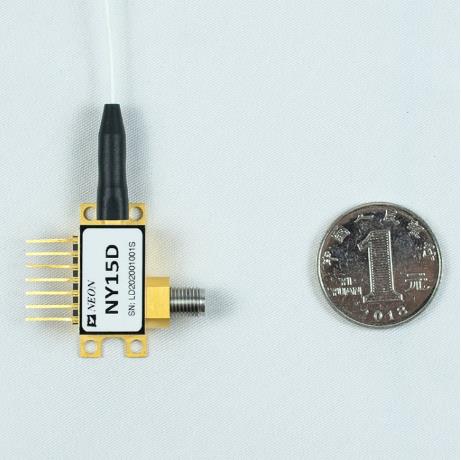

microwave DFB laser diode

Directly modulated lasers are a key technology in modern optical communication, offering a cost-effective solution for high-speed data transmission. By understanding the key performance metrics, the factors influencing modulation bandwidth, and the methods used to control optical output power, you can gain a clearer picture of how DML lasers operate. Additionally, recognizing the typical wavelength ranges and reliability considerations will help in selecting the right DML laser for specific applications. As advancements continue, DML lasers are expected to play an even more significant role in the future of telecommunications and data networking.
